1 Series E81 120i (N46T) 3-door

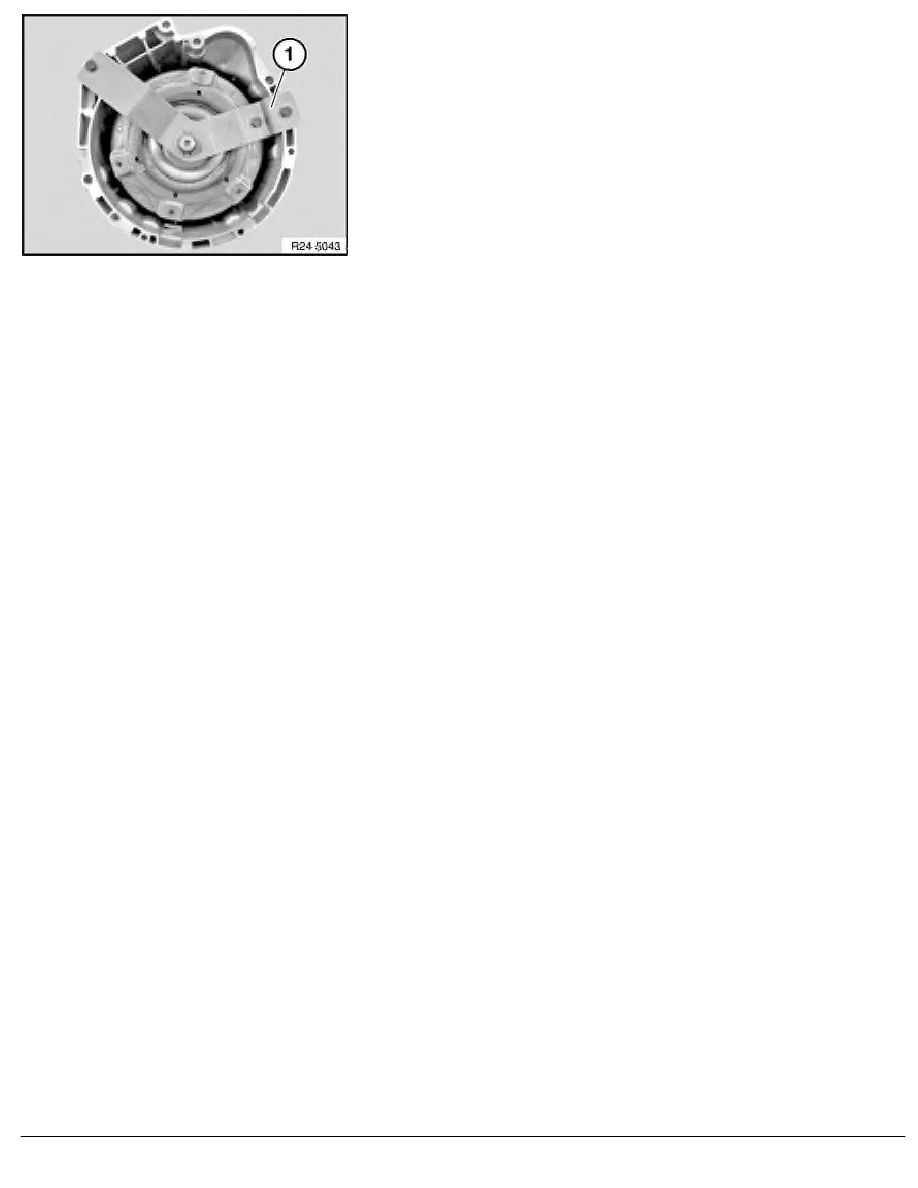

Remove transportation lock (1).
Convert all cable holders.
Convert all seal plugs.
Remove protective cap on output shaft.
If necessary, modify transmission support block. Tightening
torque 24 71 6AZ
.
Important!
After removing transportation lock, secure torque converter
against slipping out.
Transmission identification:
-
refer to BMW Parts Service.
-
on type plate
RA Installing replacement transmission (GA6L45R)
