1 Series E81 123d (N47S) 3-door
12 21 520
Replacing glow control unit (N47)
Necessary preliminary tasks:
•
Switch off ignition
•
Remove acoustic cover
Note:
Installation location: on intake air manifold, bottom.

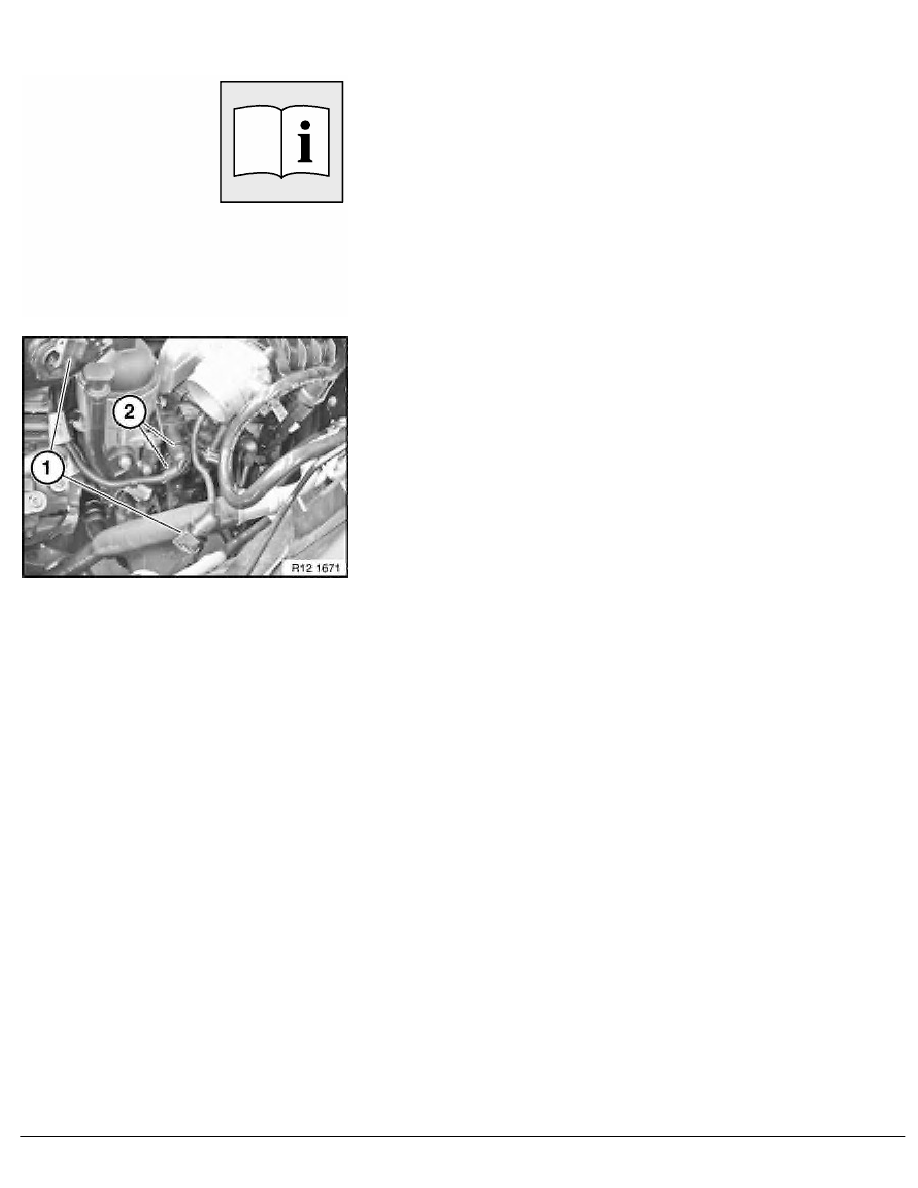

Disconnect plug (1) from temperature sensor
Disconnect pressure pipe from throttle valve
Detach plug (2) from glow control unit. Remove glow control unit.
