1 Series 120d (N47) Coupe

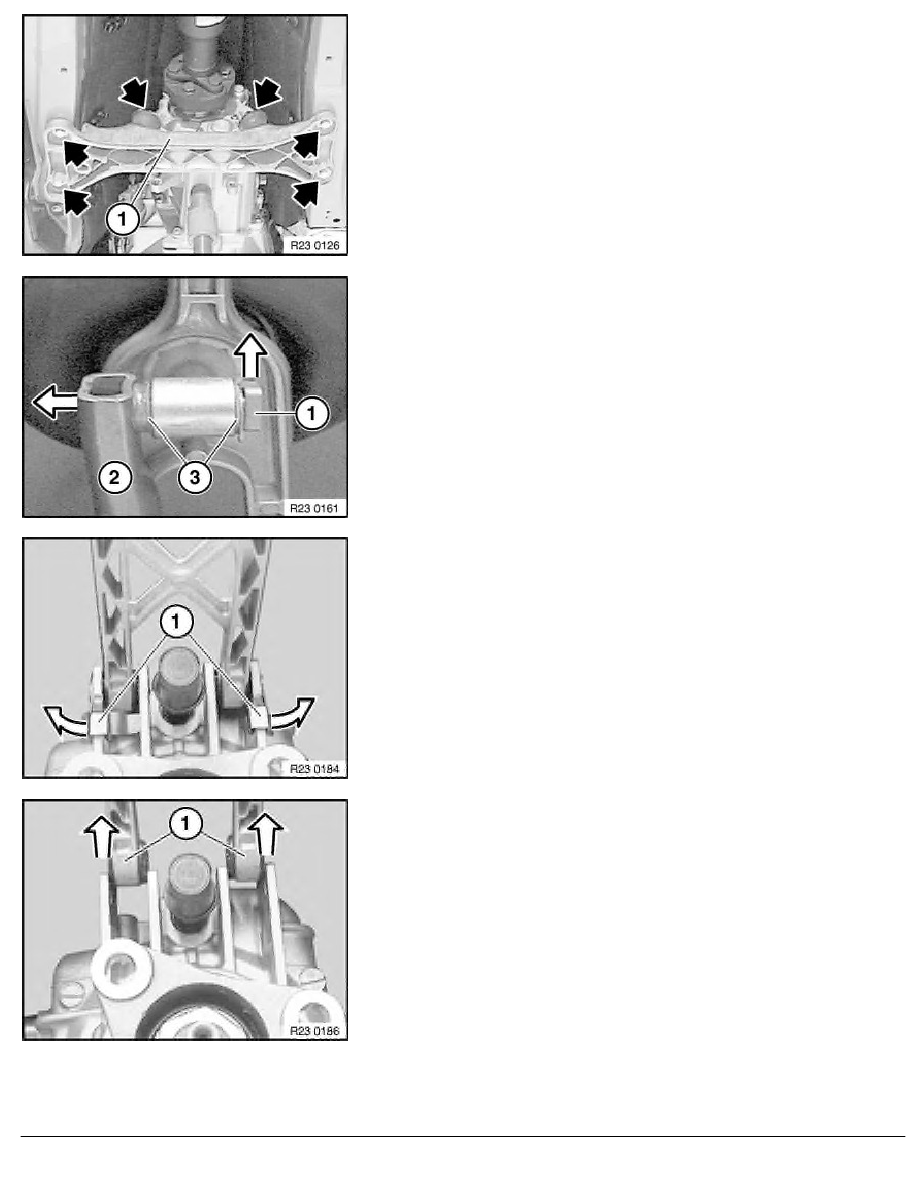

Remove screws and nuts.
Remove cross-member.
Tightening torque 22 31 3AZ/ 4AZ
Lever out retainer (1).
Disengage shift rod (2).
Installation:
Grease shift rod.
Grease,
Refer to BMW Service Operating Fluids.
Make sure shims (3) are in correct position.
Release and remove bearing pins (1) in direction of arrow.
Lift out shift arm (1).
Installation:
Grease bearing pins (1).
Grease,
Refer to BMW Service Operating Fluids.
RA Removing and installing transmission (GS6-37DZ) N47, N47S
