1 Series 123d (N47S) Coupe
22 11 001
Replacing right engine mount (M47T2, N47,
N47S)
Necessary preliminary tasks:
•
Secure engine in installation position.
•
Remove underbody protection.

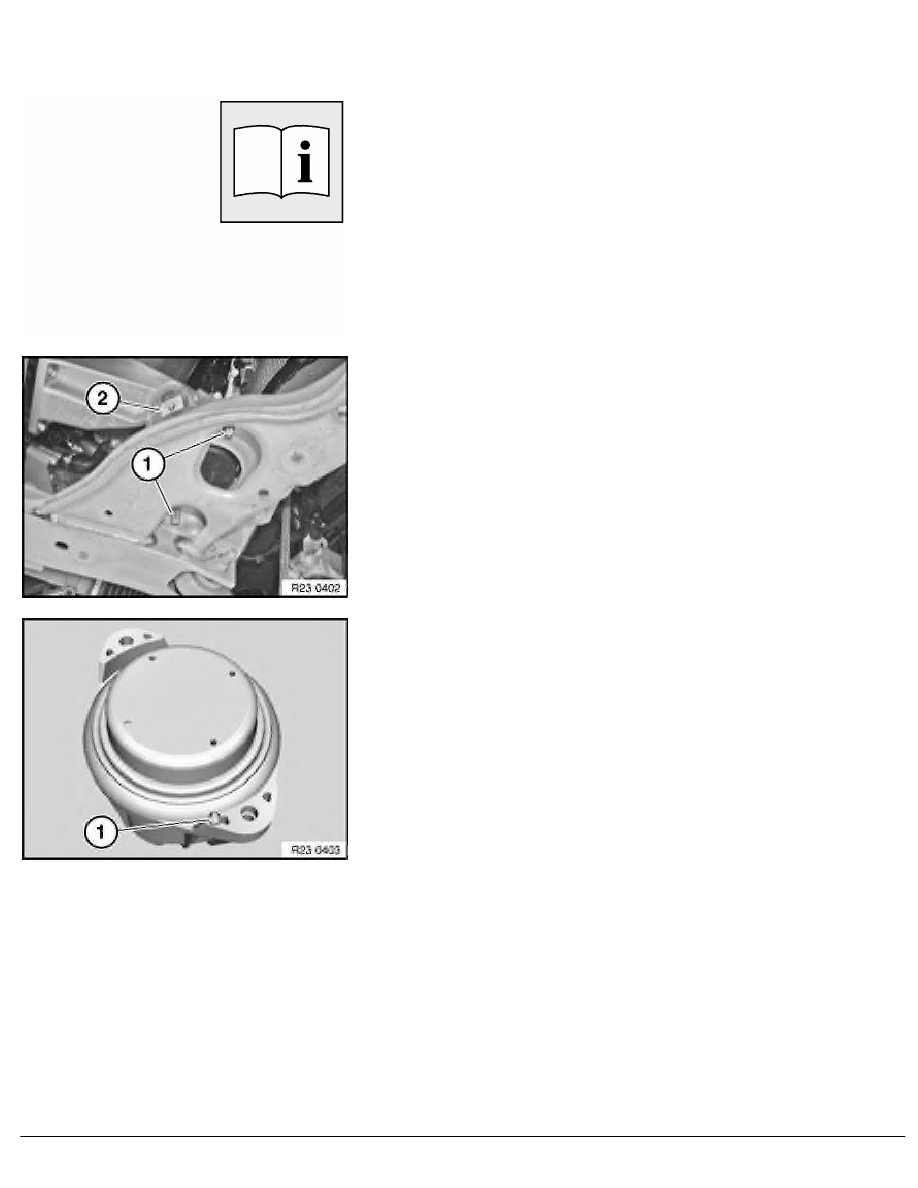

Release screws (1) and remove engine mount (2).
Tightening torque 22 11 1AZ
.
Installation:
Lug (1) of engine mount must point to middle of vehicle.
Engine mount designations:
Right engine mount:
Even component number
Left engine mount:
Odd component number
RA Replacing right engine mount (M47T2, N47, N47S)
