1 Series 128i (N52K) Coupe
51 11 ...

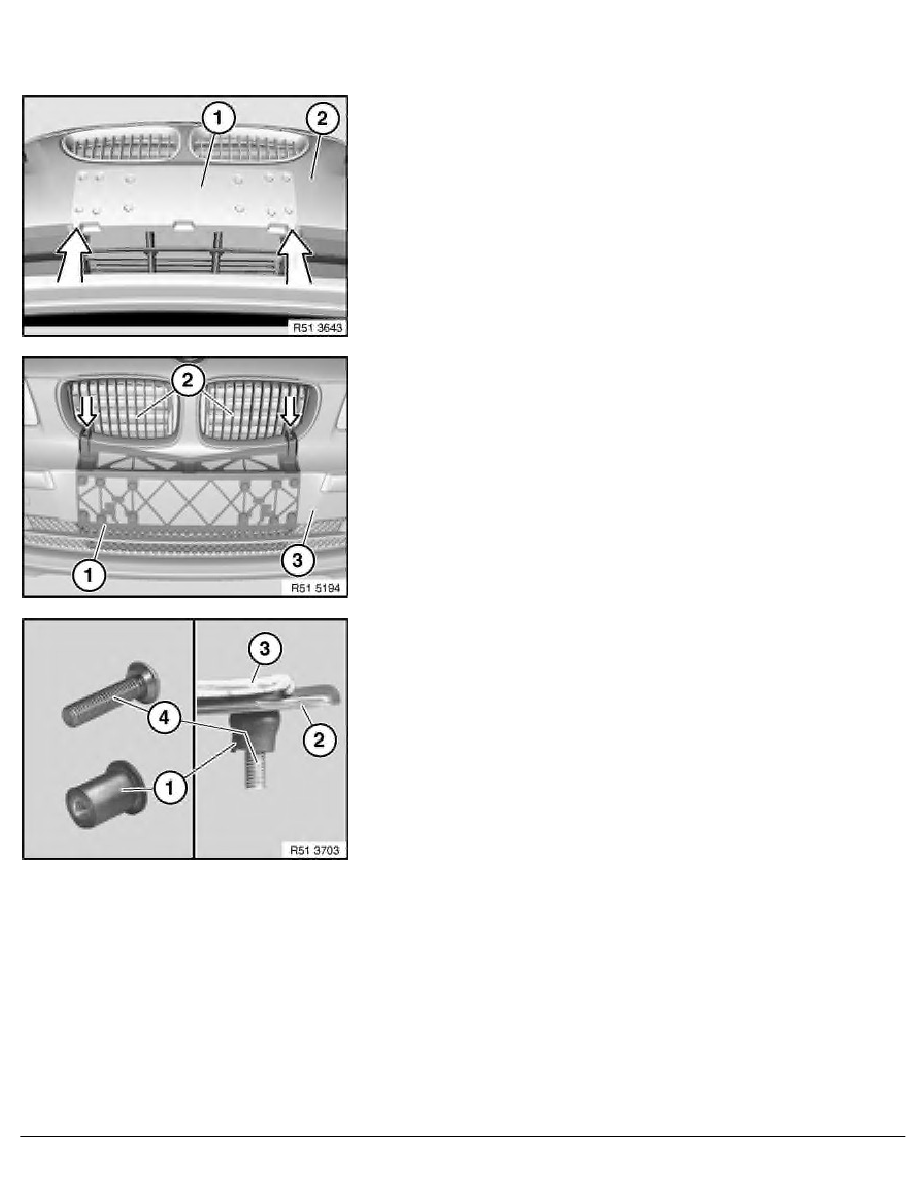

Installing/replacing number/license plate
(without base)
Initial fitting:
Place drilling hole template (1) on bumper (2).
Note:
Hole diameter = 2.5 mm (see template).
Drill holes according to number/license plate.
Remove template (1) and secure number/license plate with
screws provided.
Tightening torque 51 11 3AZ
.
Fit protective caps.
Place drilling hole template (1) on radiator grille (2) and
bumper (3).
Note:
Hole diameter = 2.5 mm (see template).
Drill holes according to number/license plate.
Remove template (1) and secure number/license plate with
screws provided.
Tightening torque 51 11 3AZ
.
Fit protective caps.
Repairing thread:
Drill out defective hole in bumper (2) to 9.5 mm diameter.
Insert blind rivet nut (1)*.
Secure number/license plate (3) with number/license plate
screw (4)*.
Tightening torque 51 11 4AZ
.
Note:
* Sourcing reference: BMW Parts Service
