1 Series 128i (N52K) Coupe
Close hinge arm (1).
Important!
Do not damage sheet metal flange of side panel.

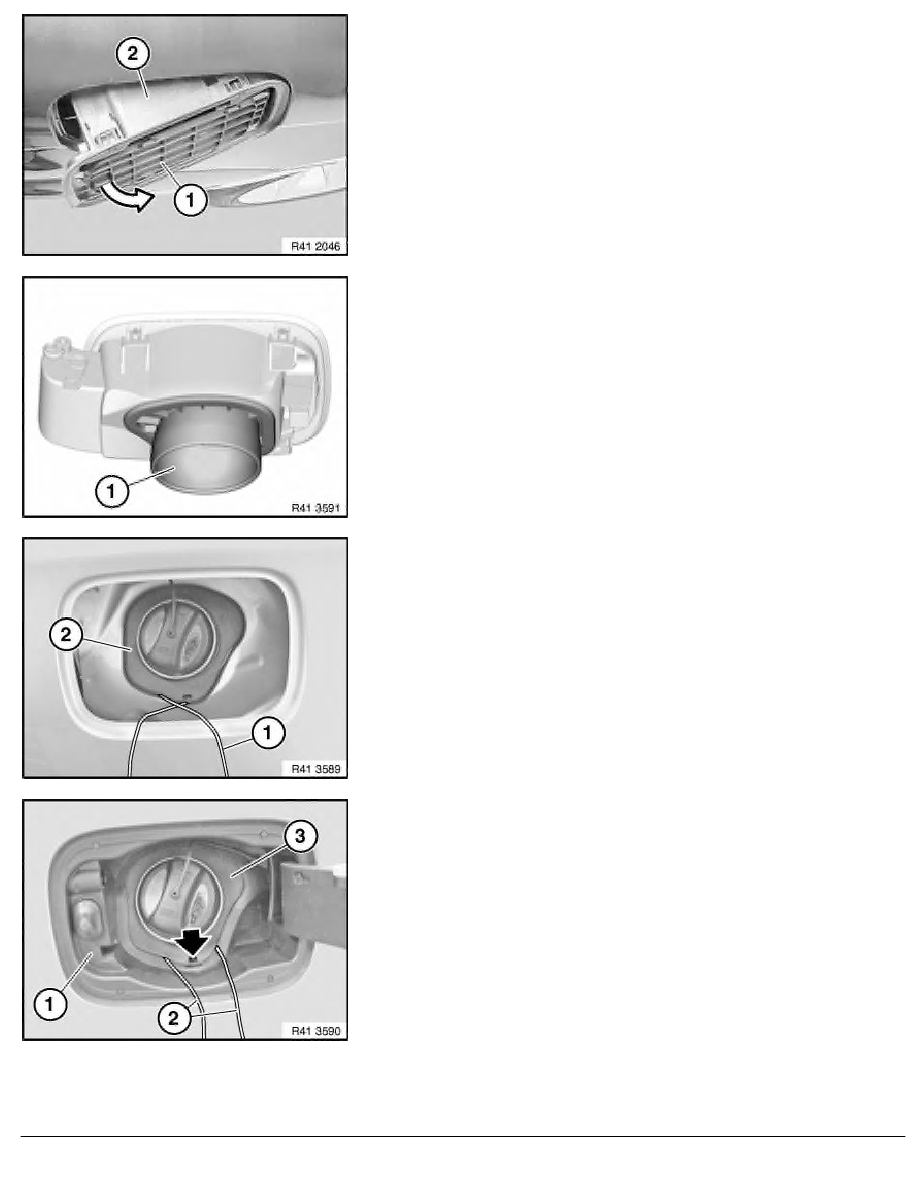

Carefully twist out cover bowl (2) at first at rear in direction of
arrow from side panel and remove.
Preparation of new part:
Remove rubber collar (1) from new part.
Installation:
Fit approx. 0.5 m long cable (1) in groove on rubber collar (2).
Installation:
Install cover bowl (1).
Thread ends of cable (2) outwards.
Align bottom rubber collar (3) with recess (see arrow).
Pull rubber collar (3) over the cover bowl by pulling the ends of
cables (2).
RA Replacing cover bowl
