1 Series 128i (N52K) Coupe
51 46 ...
Removing and installing/replacing cover for
rear left or right seat belt
Necessary preliminary tasks:
•
Remove trim panel on roof pillar at rear

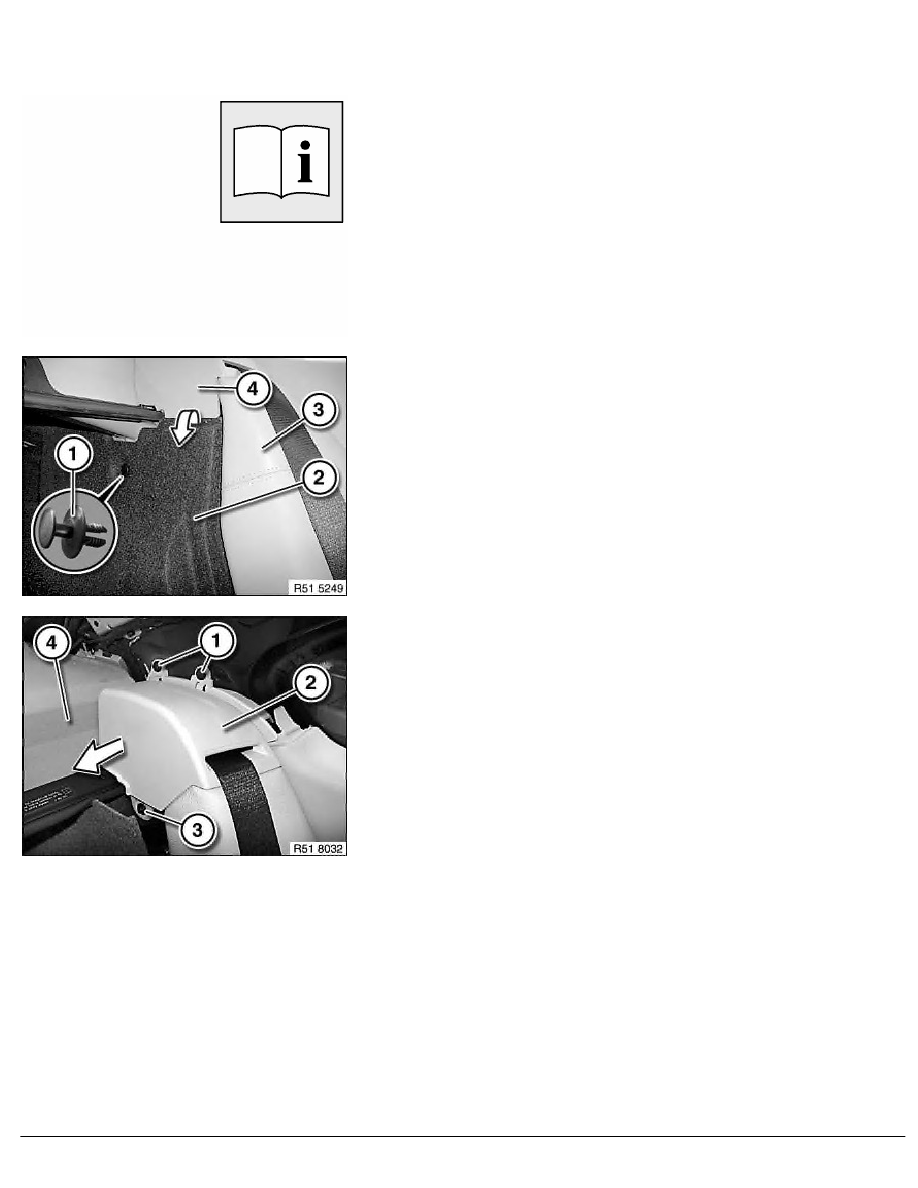

Release clip (1).
Feed luggage compartment wheel arch trim (2) out of rest side
section (3) and cover (4).
Note:
Feed out luggage compartment wheel arch trim (2) at top only to
facilitate access to screw underneath.
Release clips (1) and screw (3).
Slide cover (2) in direction of arrow and feed out of rear parcel
shelf (4).
Feed cover (2) out of belt and remove.
