1 Series 128i (N52K) Coupe
66 12 100
Removing and installing/replacing slide-in
unit for radio control key
Necessary preliminary tasks:
•
Remove lower left trim from instrument panel

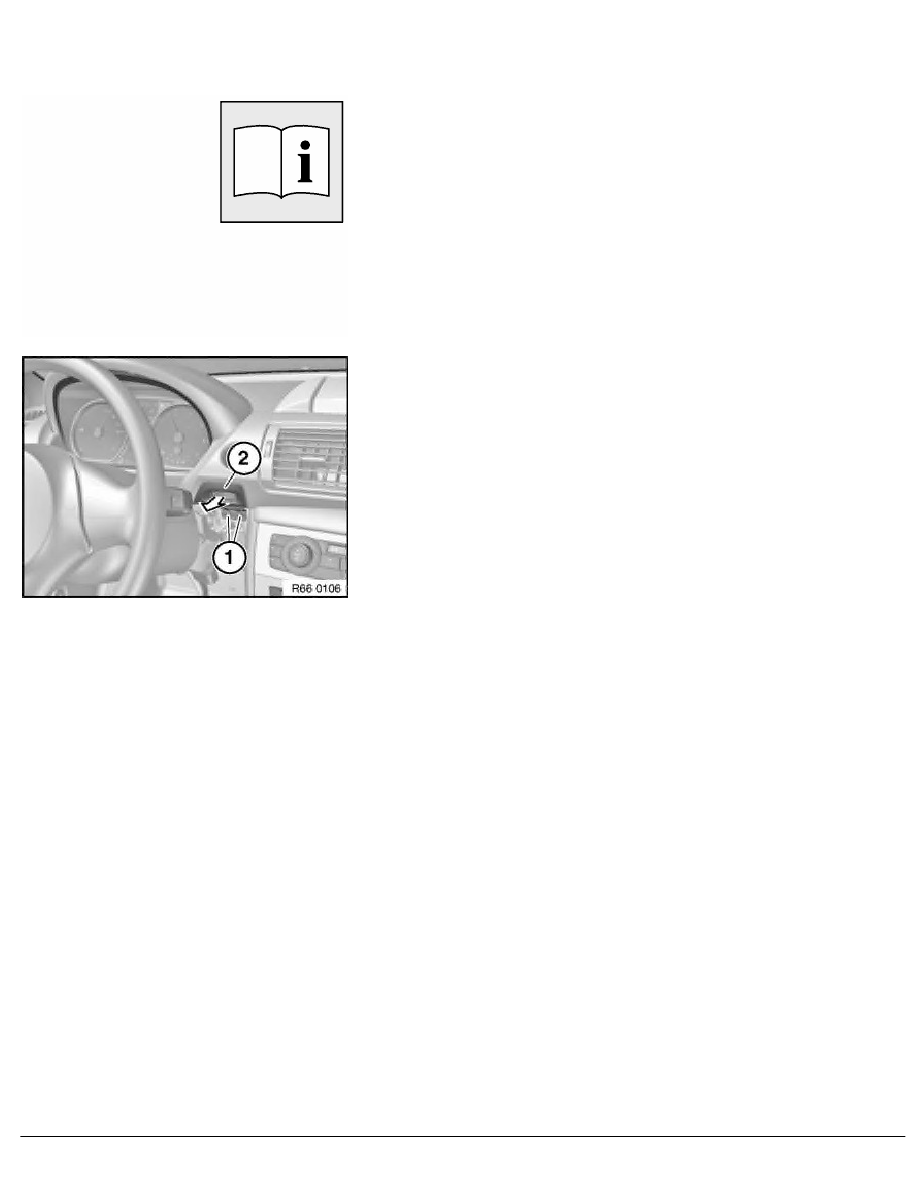

Release screws (1).
Pull back slide-in unit for radio control key (2) with associated
ribbon cable.
Important!
Carefully unlock and disconnect associated plug connection
for ribbon cable.
Replace the ribbon cable if damaged.
The ribbon cable leads to:
•
Control unit for Car Access System
•
Start/Stop switch
Remove slide-in unit for radio control key (2).
RA Removing and installing/replacing slide-in unit for radio control key
