1 Series 135is (N54) Coupe
51 49 000
Removing and installing/replacing panel for
rear lid

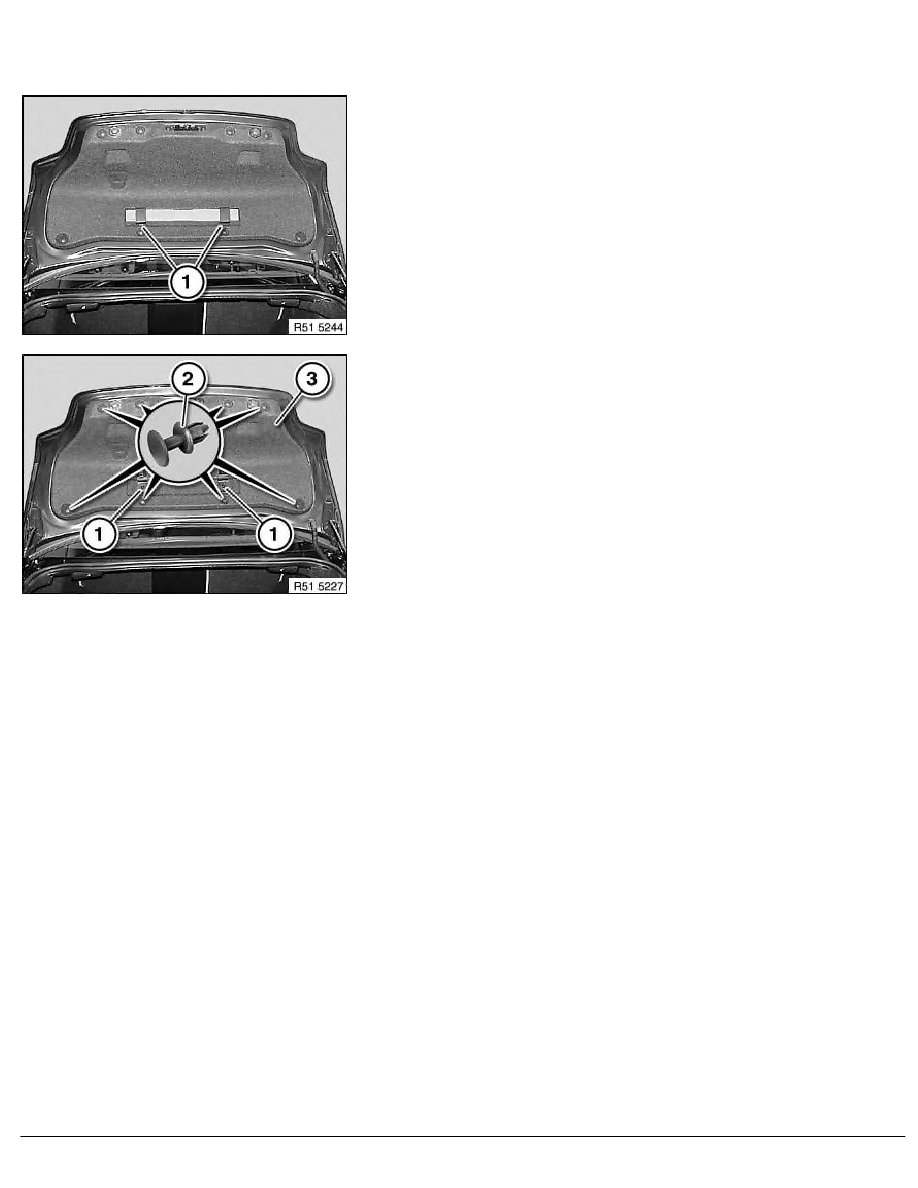

Release both brackets (1) and remove warning triangle.
Release screws and remove both brackets (1).
Release expansion rivets (2) and remove trim (3).
Installation:
If necessary, replace damaged expander rivets (2).
RA Removing and installing/replacing panel for rear lid
BMW AG - TIS
18.01.2013 10:58
Issue status (12/2007) Valid only until next DVD is issued
