1 Series 135is (N54) Coupe
51 71 ...
Removing and installing/replacing
multifunction pan
Necessary preliminary tasks:
•
Remove left and right luggage compartment wheel arch trims
•
Remove battery
•
Remove battery leads

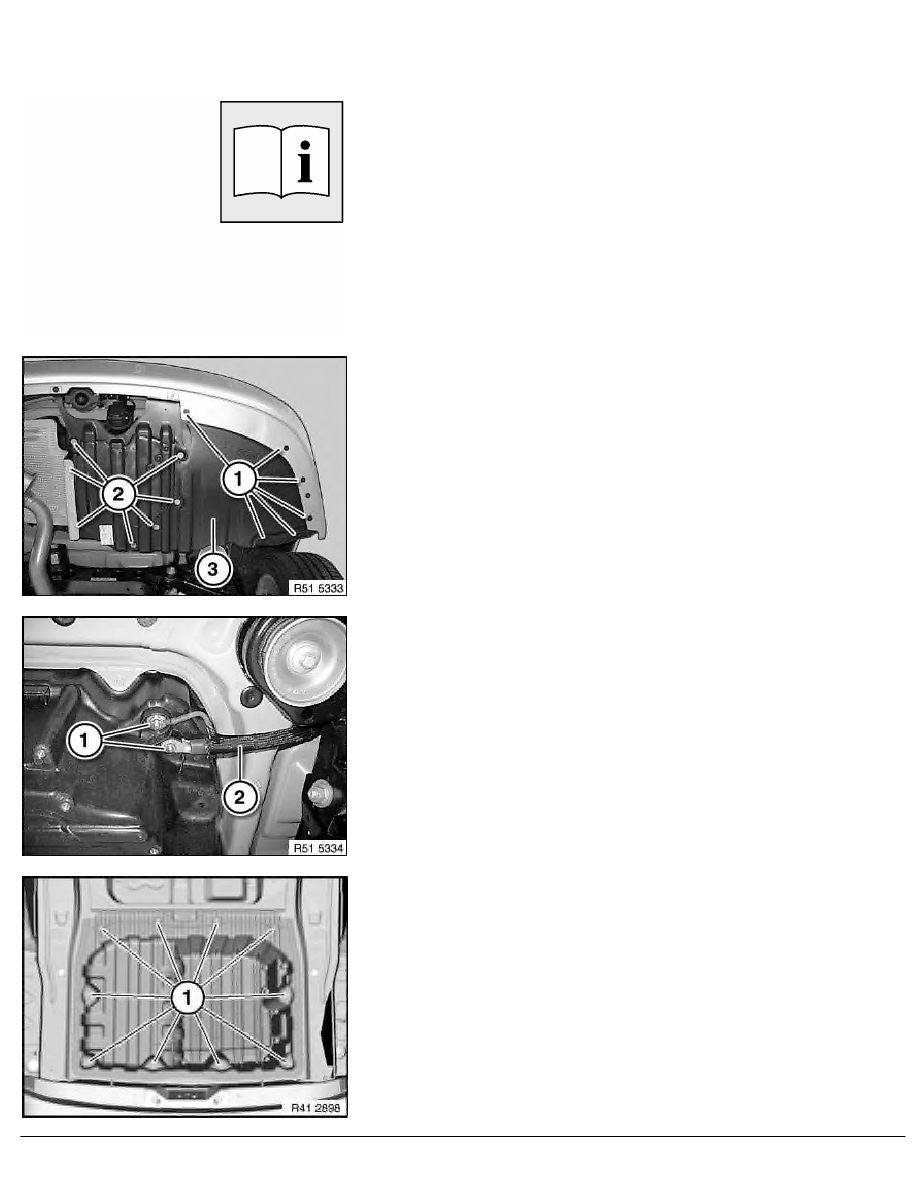

Release screws (1 and 2).
Remove cover (3).
Release nuts (1) from multifunction pan at bottom. Lay battery
wiring harness (2) to one side.
Release nuts (1) and remove multifunction pan.
Tightening torque 51 71 9AZ
.
RA Removing and installing/replacing multifunction pan
