1 Series E87 116i (N43) 5-door
The specified dimensions refer to removed assemblies.

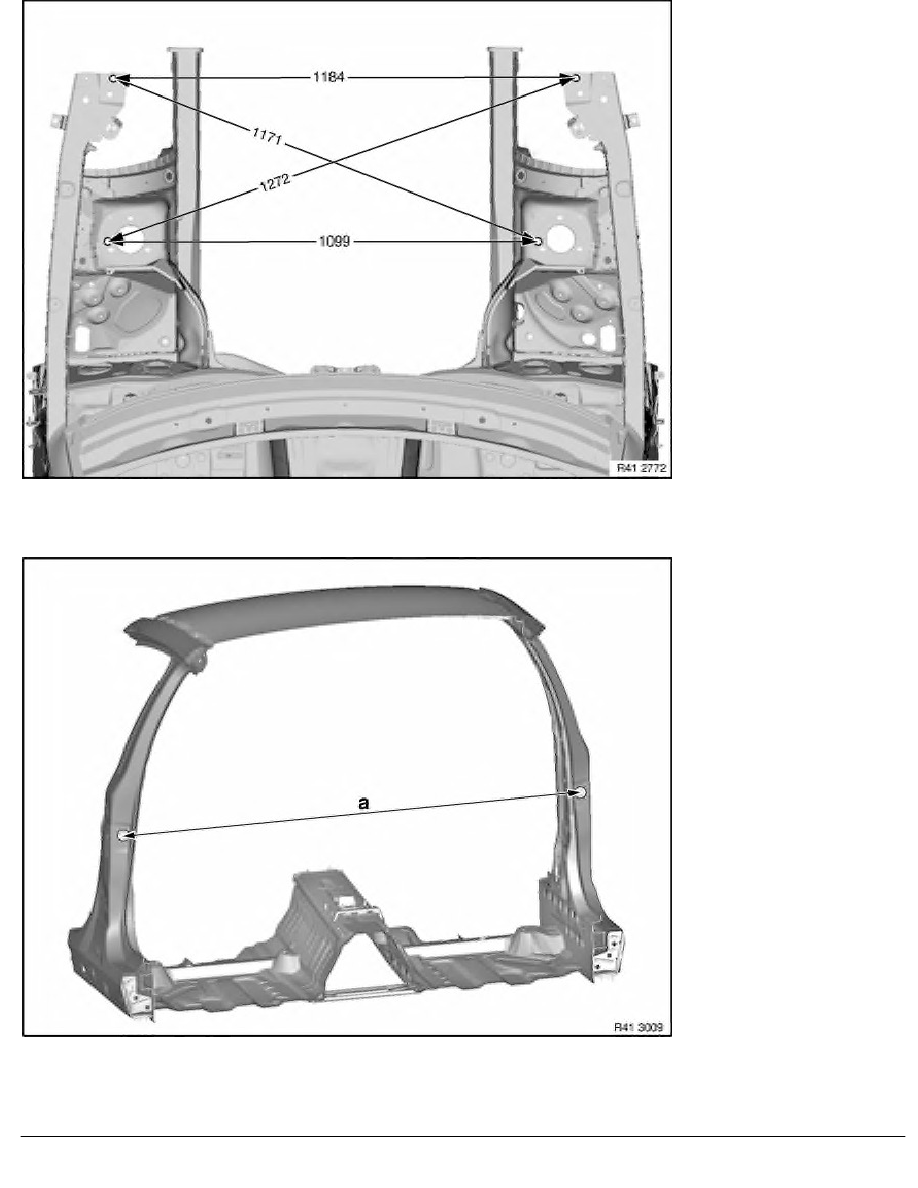

View, B-pillar
Measurement a=1475 mm between screw-on points of door brakes.

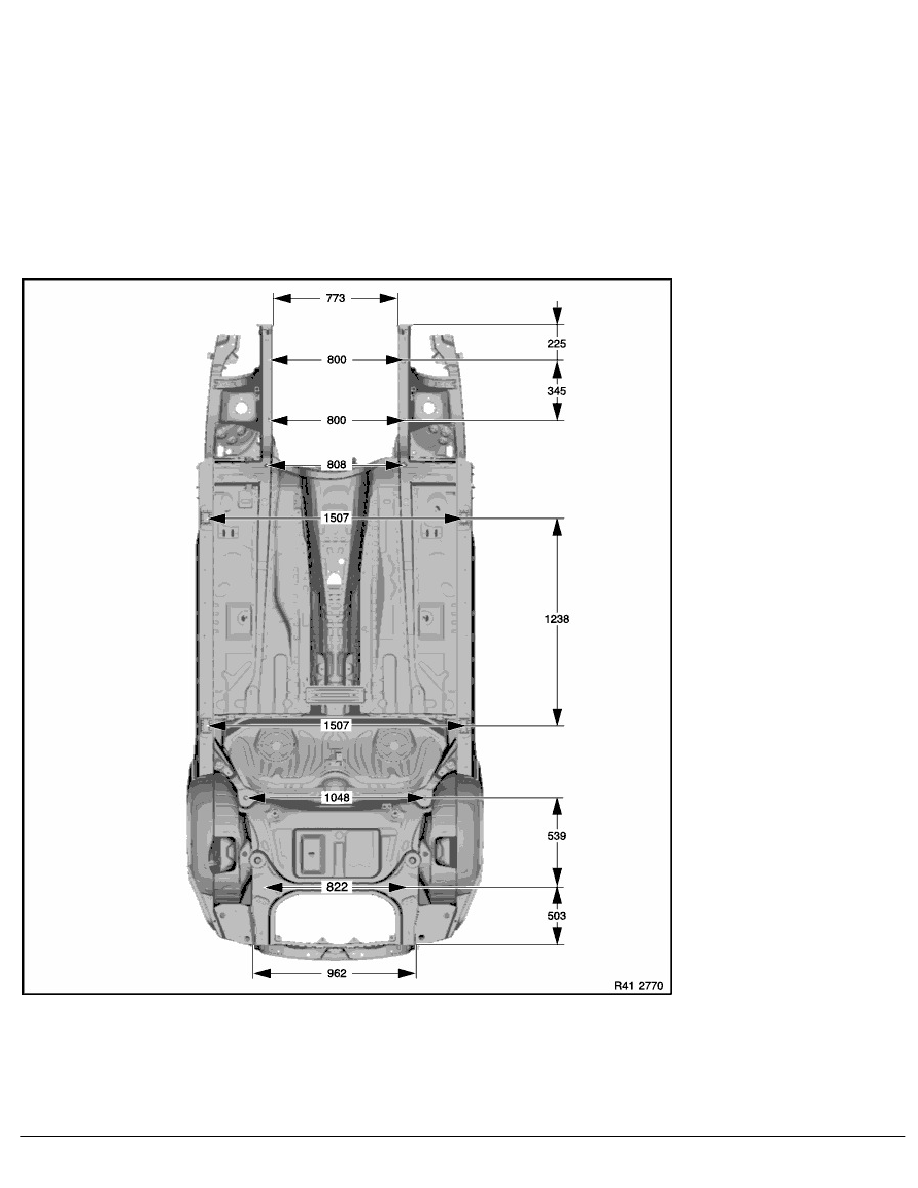

RA Frame alignment control dimensions, body
BMW AG - TIS
15.01.2013 16:37
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 3 -
