1 Series E87 116i (N45) 5-door
22 11 001
Replacing right engine mount
(N45/N46/N45T/N46T)
Necessary preliminary tasks:
•
Secure engine in installation position
•
Remove underbody protection
•
Remove right V-strut (E88 only)

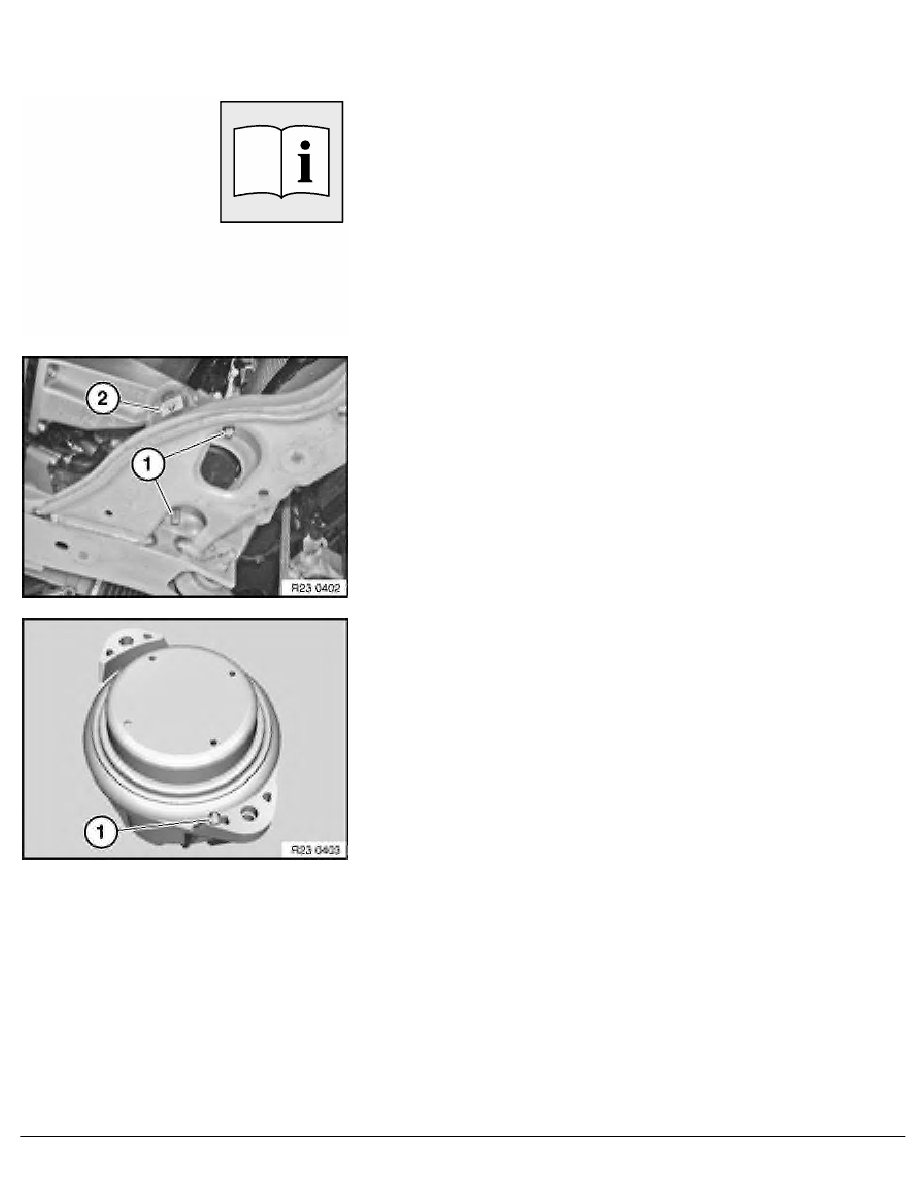

Release screws (1) and remove engine mount (2).
Tightening torque 22 11 1AZ
.
Installation:
Lug (1) of engine mount must point to middle of vehicle.
Engine mount designations:
Right engine mount:
Even component number
Left engine mount:
Odd component number
RA Replacing right engine mount (N45/N46/N45T/N46T)
BMW AG - TIS
16.01.2013 20:27
Issue status (12/2007) Valid only until next DVD is issued
