1 Series E87 118i (N43) 5-door

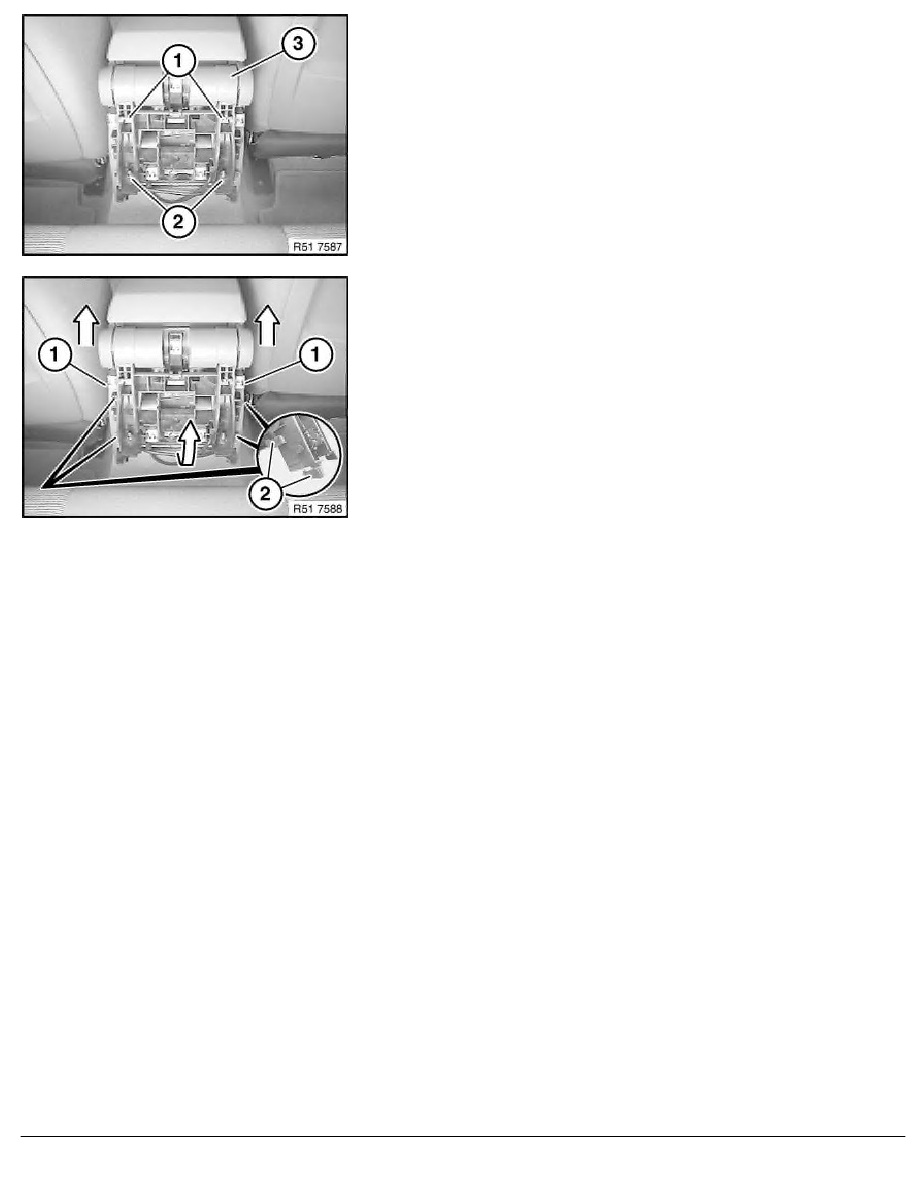

Release screws (1) and nuts (2) on center armrest (3).
Raise storage compartment (1) slightly and extend center
armrest (2) in downwards direction.

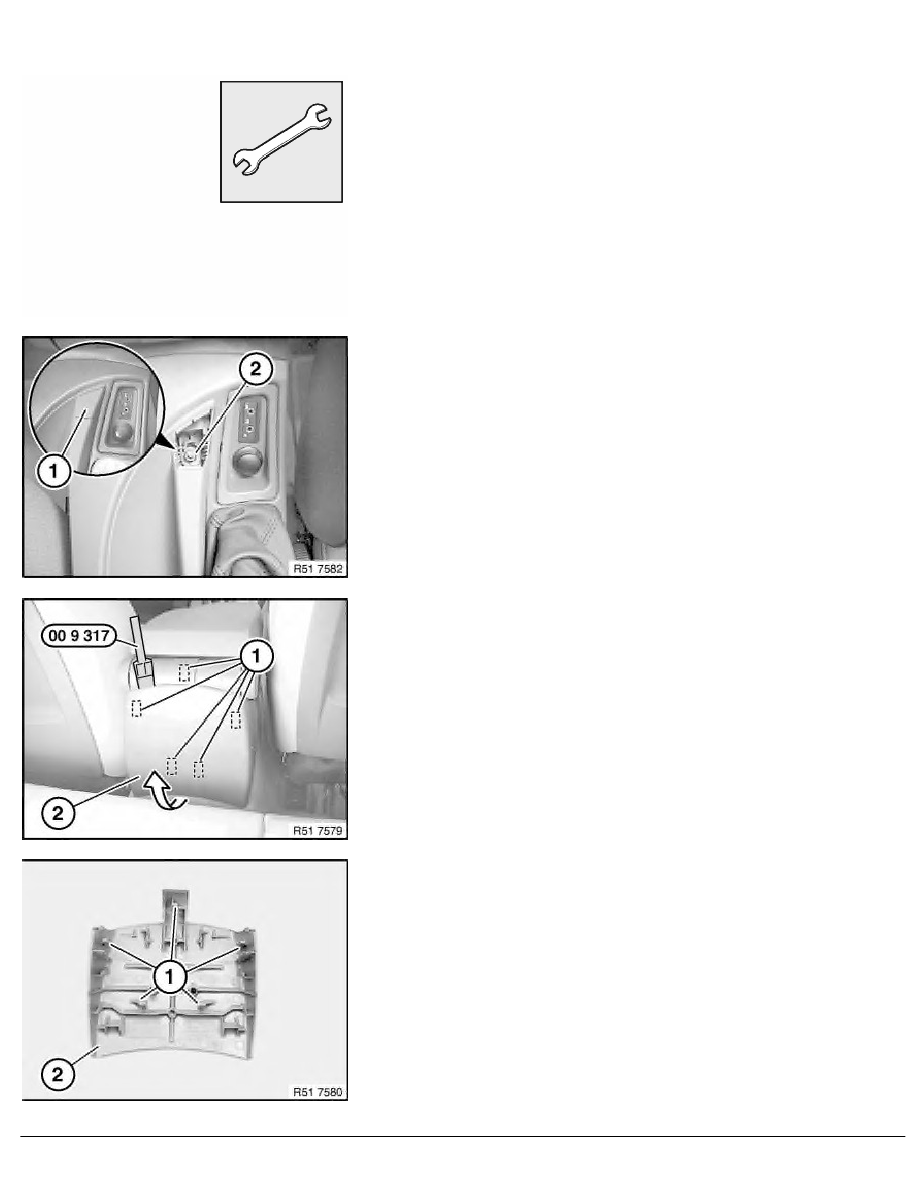

RA Removing and installing center armrest
BMW AG - TIS
19.01.2013 21:12
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 2 -
