1 Series E87 118i (N43) 5-door
51 16 365
Removing and installing/replacing glovebox
cover (up to 03/2007)
Necessary preliminary tasks:
•
Remove trim for instrument panel, bottom left
•
Remove a clip-mounted trim
•
Remove right fresh-air grille
•
Remove middle trim on function carrier
•
Remove glovebox light

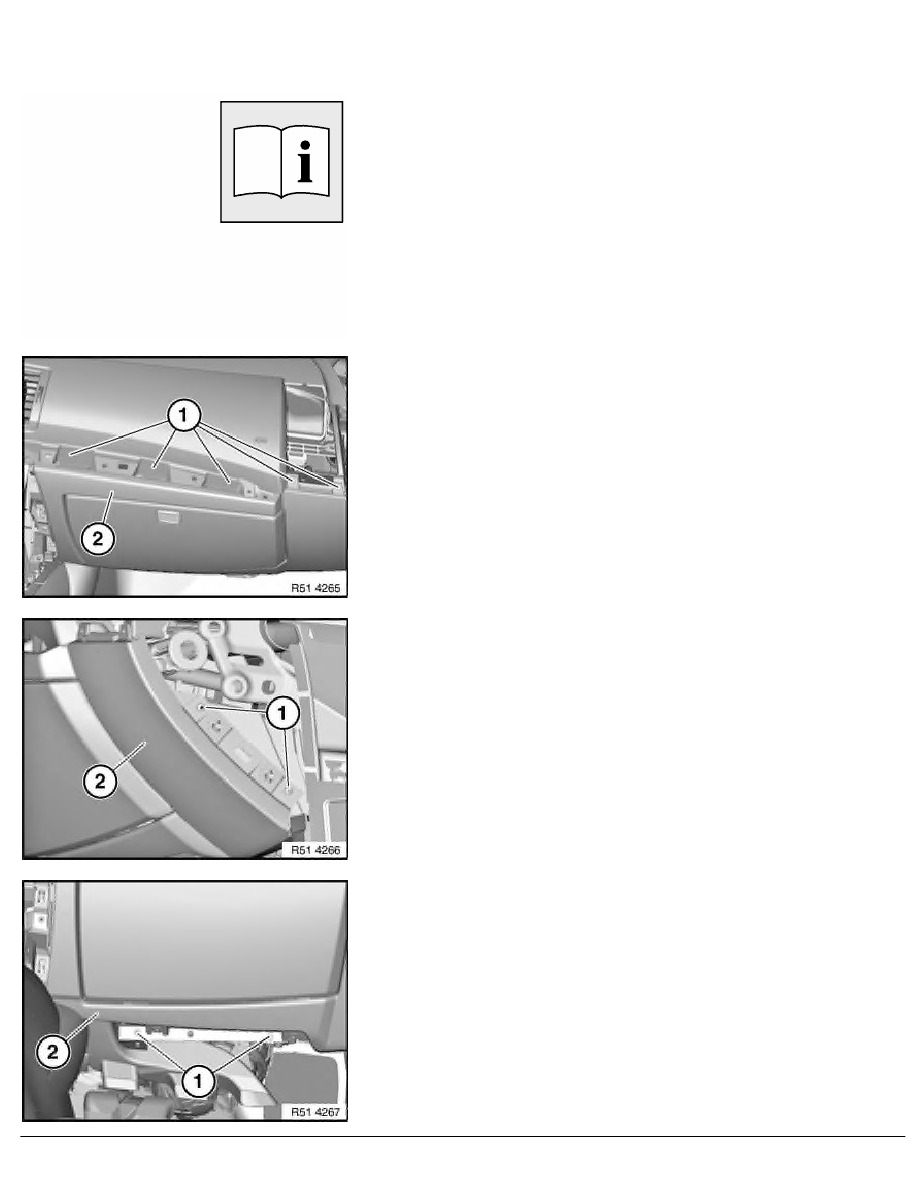

Release screws (1) on glovebox cover (2) at top.
Release screws (1) on glovebox cover (2) at sides.
Release screws (1) on glovebox cover (2) at bottom.
RA Removing and installing/replacing glovebox cover (up to 03/2007)
