1 Series E87 118i (N46T) 5-door
11 12 000
Removing and installing/sealing cylinder head
cover (N46T)
Necessary preliminary tasks:
•
Remove ignition coil cover.
•
Remove ignition coils.
•
Detach ignition coil wiring harness from cylinder head cover
and lay to one side.
•
Remove bulkhead.

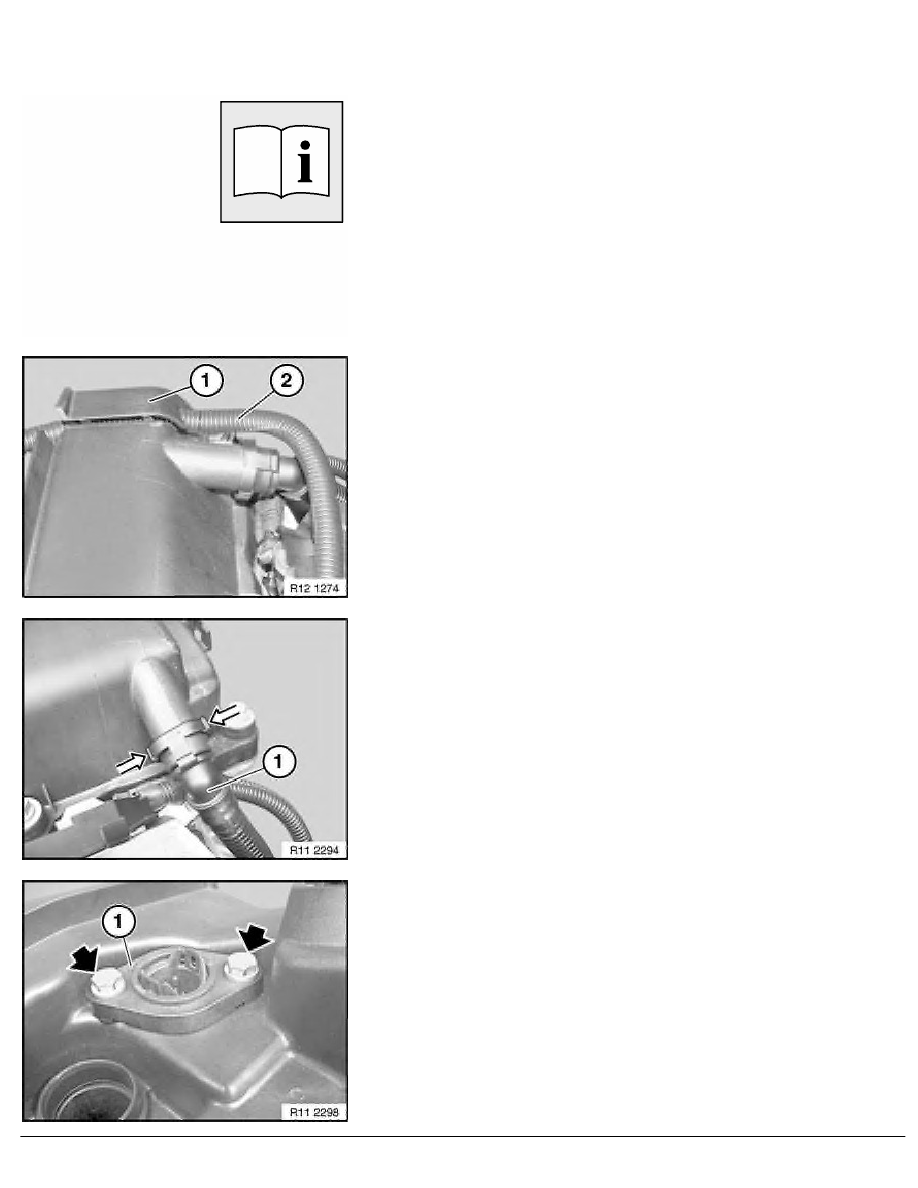

Carefully lift out cover (1).
Lay cable (2) to one side.
Press lock.
Pull off the hose for the engine breather.
Remove sealing element (1) for sensor.
RA Removing and installing/sealing cylinder head cover (N46T)
