1 Series E87 118i (N46T) 5-door
86 10 ...

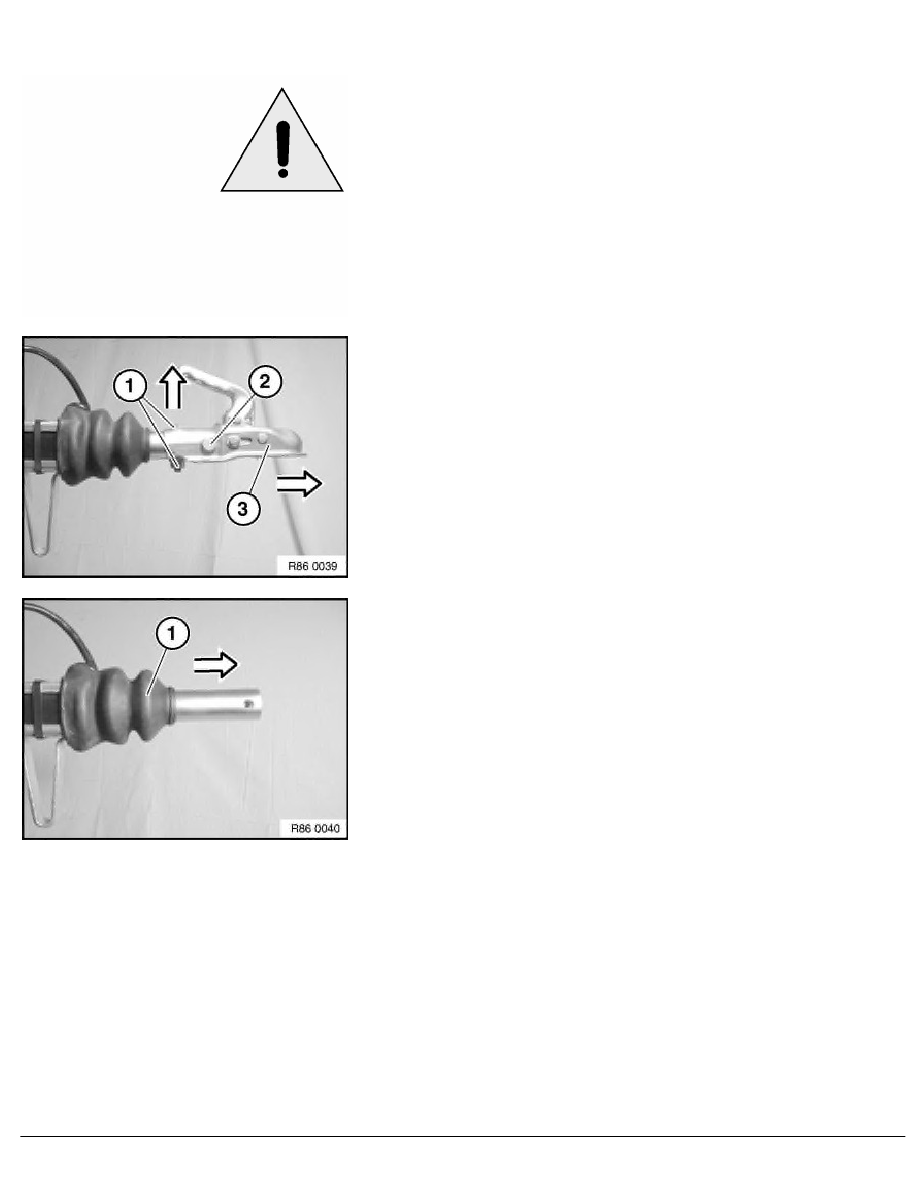

Replacing gaiter
Position brake lever fully towards rear.
Release screws (1) and (2) and remove. Pull off towing
attachment (3) in direction of arrow.
Installation:
Tightening Torque,
refer to Technical Data 86 10 15AZ.
Pull off gaiter (1) in direction of arrow.
RA Replacing gaiter
