Replacing storage compartment
Necessary preliminary tasks:
•
Remove storage compartment
Version with centre armrest:
•
Remove centre armrest

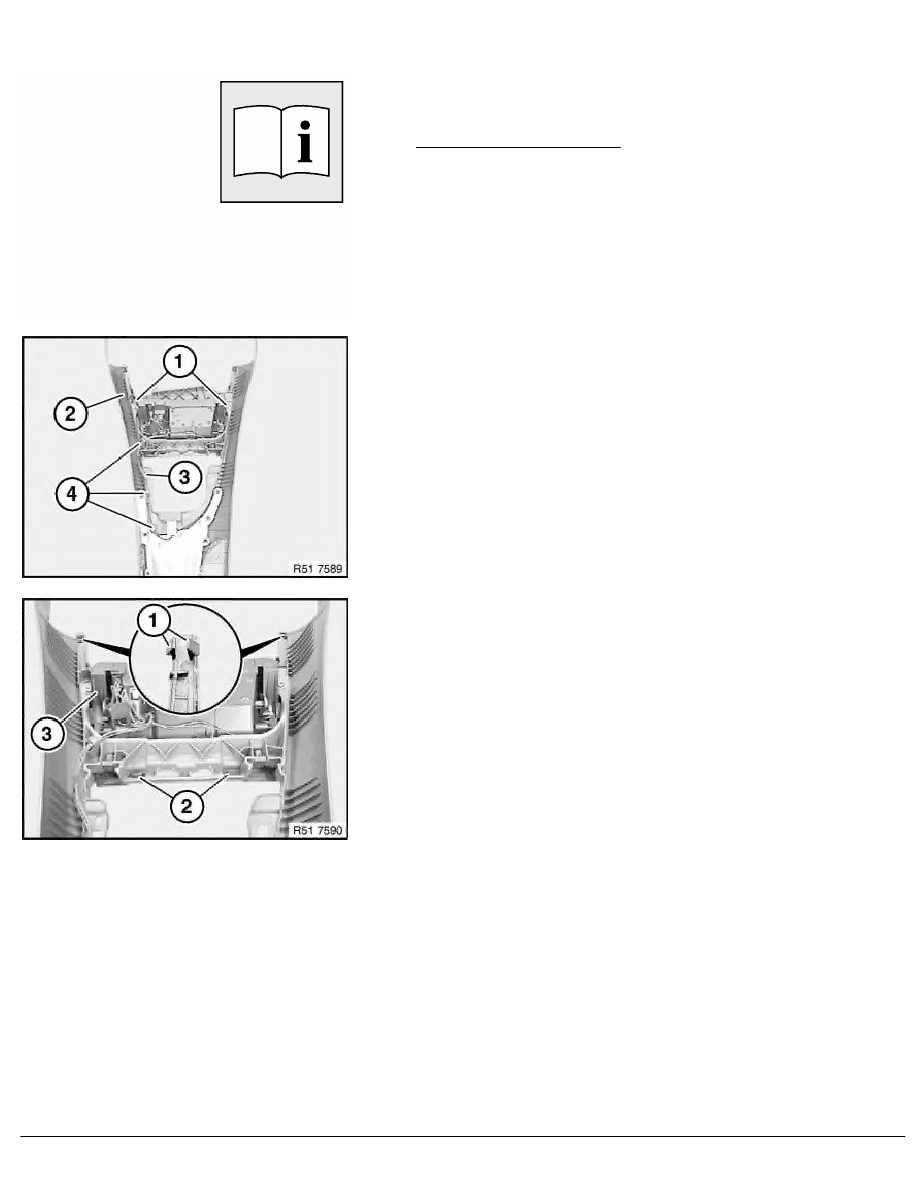

Release screws (1) on storage compartment (2).
Feed electrical lead (3) out of holders (4).
Unclip catches (1) and (2) on ashtray/storage trim at front (3).
Installation:
Catches (1) and (2) must not be damaged.
RA Replacing storage compartment
