1 Series E87 120d (N47) 5-door
Only when fitting retaining rings:
Remove left footwell side trim panel.
Drive through pins (1).
Fold carpet (2) inwards slightly and remove pins (1).

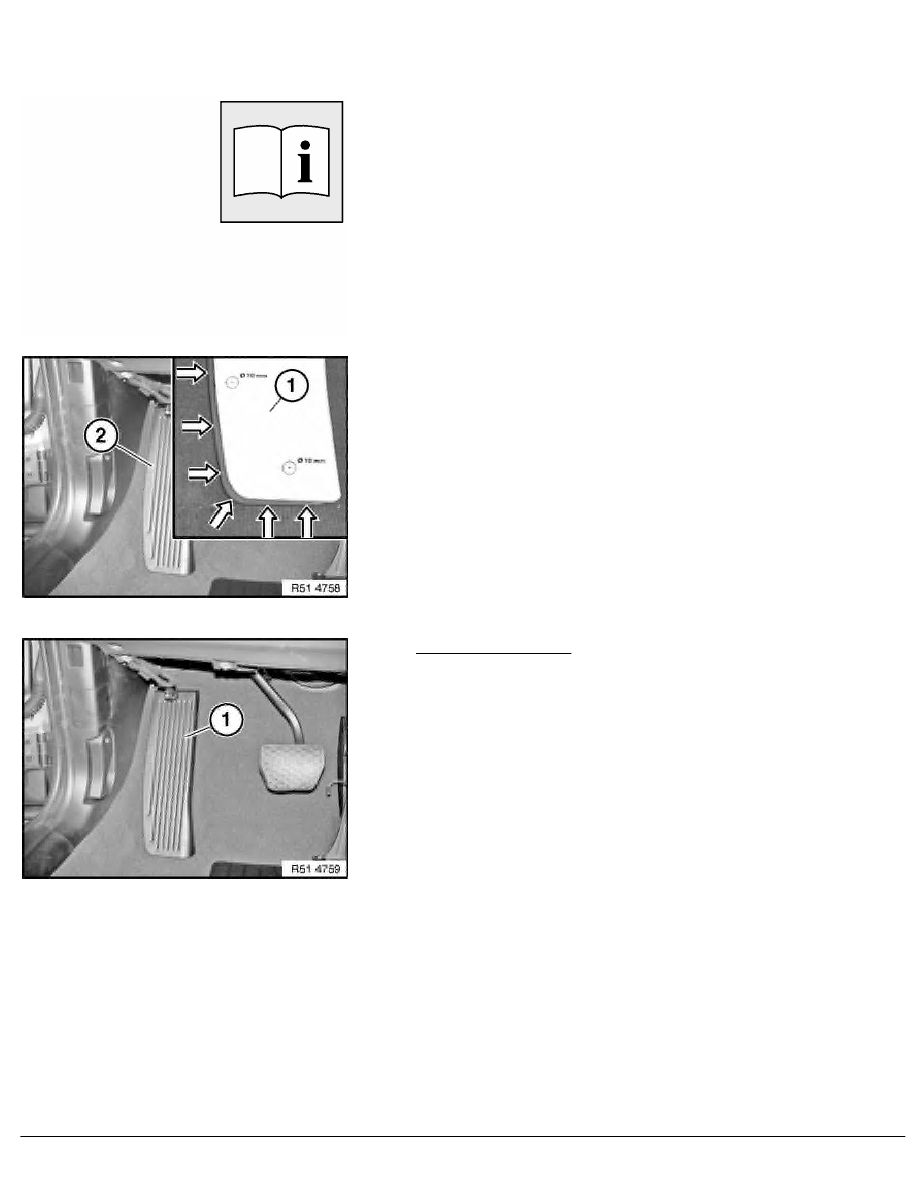

Installation:
Heat footrest (1) with hot air blower and apply adhesive bead
along dashed line (2) with hot-melt adhesive gun.
Place footrest (1) on carpet and stick on.
Press footrest (1) down until adhesive bead has cooled down.
RA Replacing footrest for front passenger compartment
