1 Series 125i (N52K) Convertible

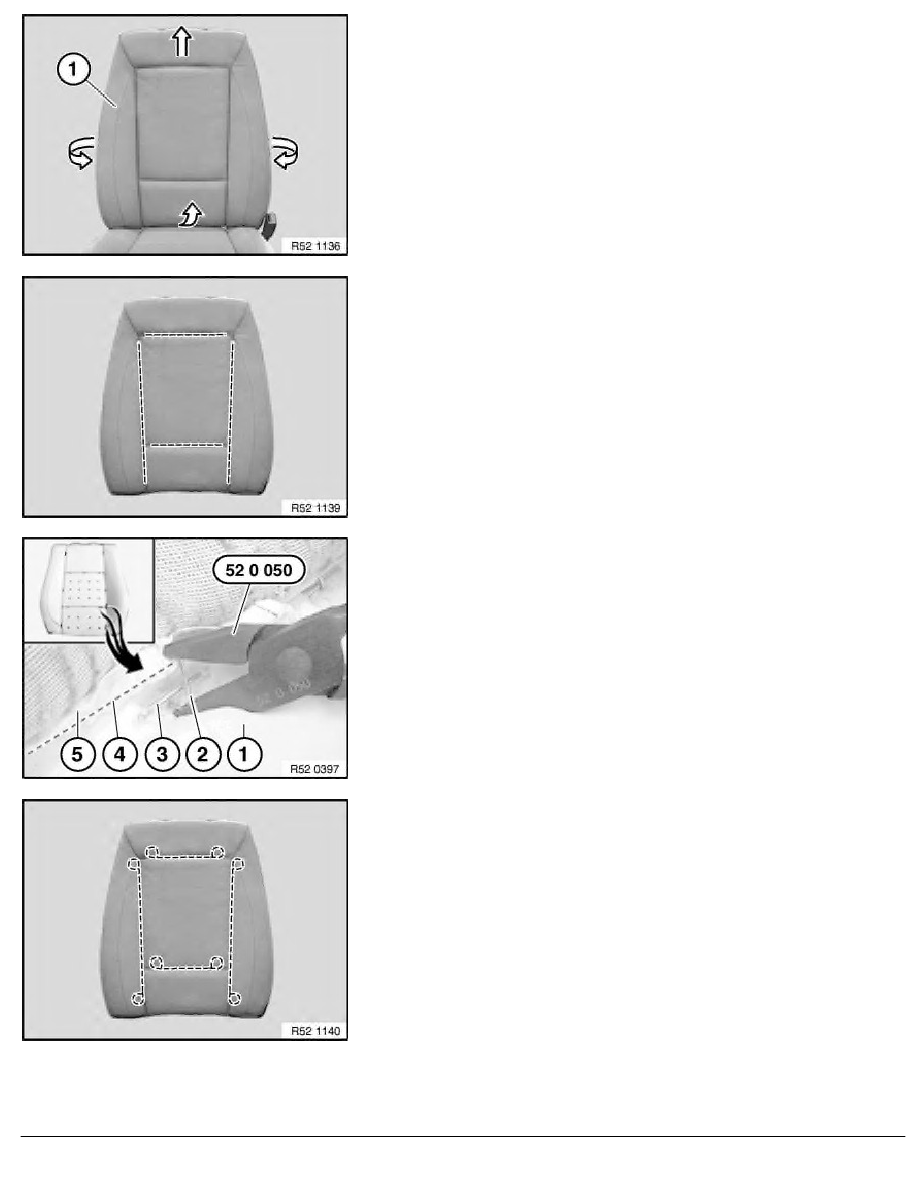

Pull off backrest cover (1) with padding sideways and towards
top from backrest frame.
Release all retainers in marked area.
Remove backrest cover from padding.
Note:
Remove all remnants of retainers from backrest cover and
padding.
Installation:
Bend new retainer (2) with special tool 52 0 050 .
1.
Padding
2.
Retainer
3.
Trim wire in padding
4.
Trim wire in backrest cover
5.
Backrest cover
Replacement of backrest cover:
Pull trim threads out of backrest cover.
Cut new backrest cover to size and insert trim threads.
RA Replacing backrest cover for left or right front seat (normal / manual)
