1 Series 125i (N52K) Convertible

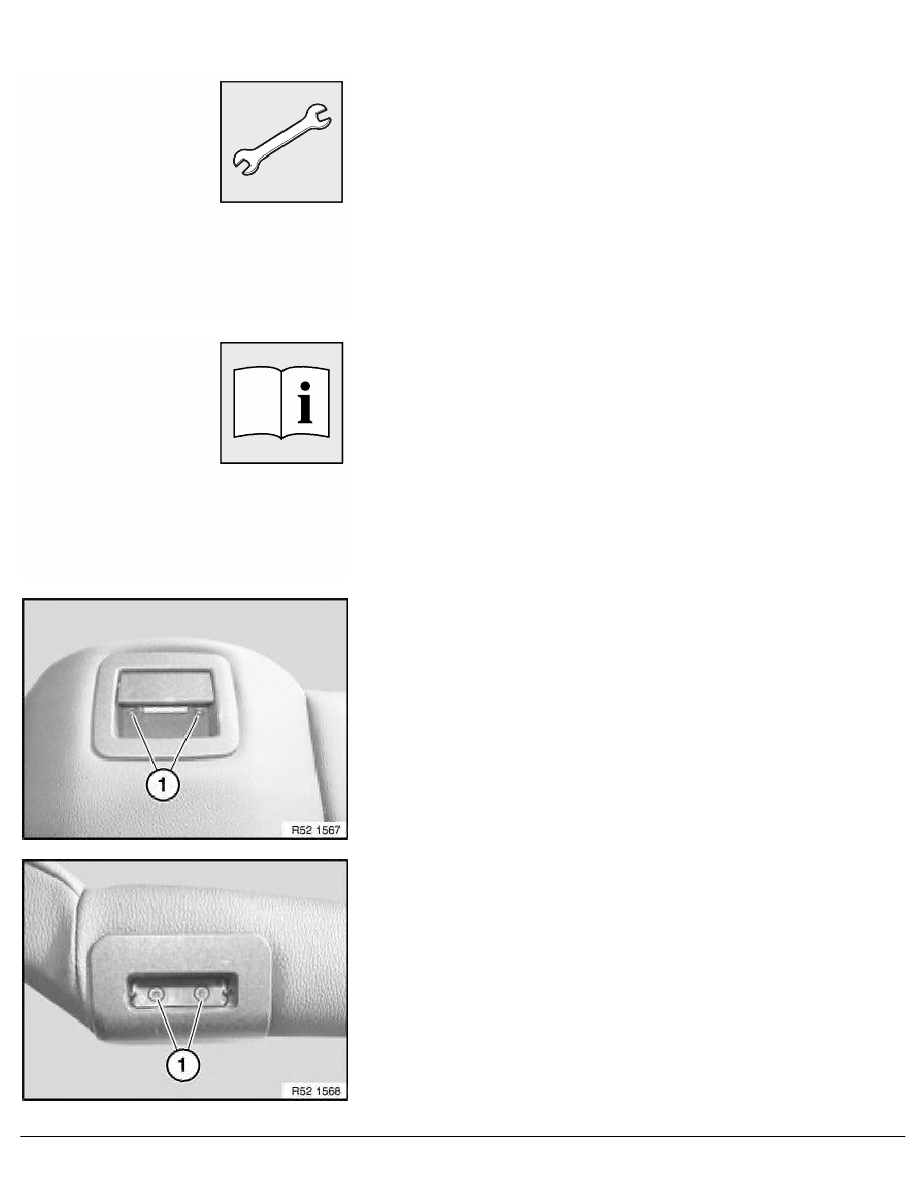

Unclip lock trim.
Lever out welt all round in marked area.
Detaching cover and padding:
•
Release all retainers in marked area
•
Remove seat cover from padding
•
Remove remaining retainers from cover and padding
Installation:
Insert new retainer (2) with special tool 52 0 050 and bend
closed.
1.
Padding
2.
Retainer
3.
Trim wire in padding
4.
Trim wire in seat cover
5.
Seat cover
RA Replacing filler element cover
