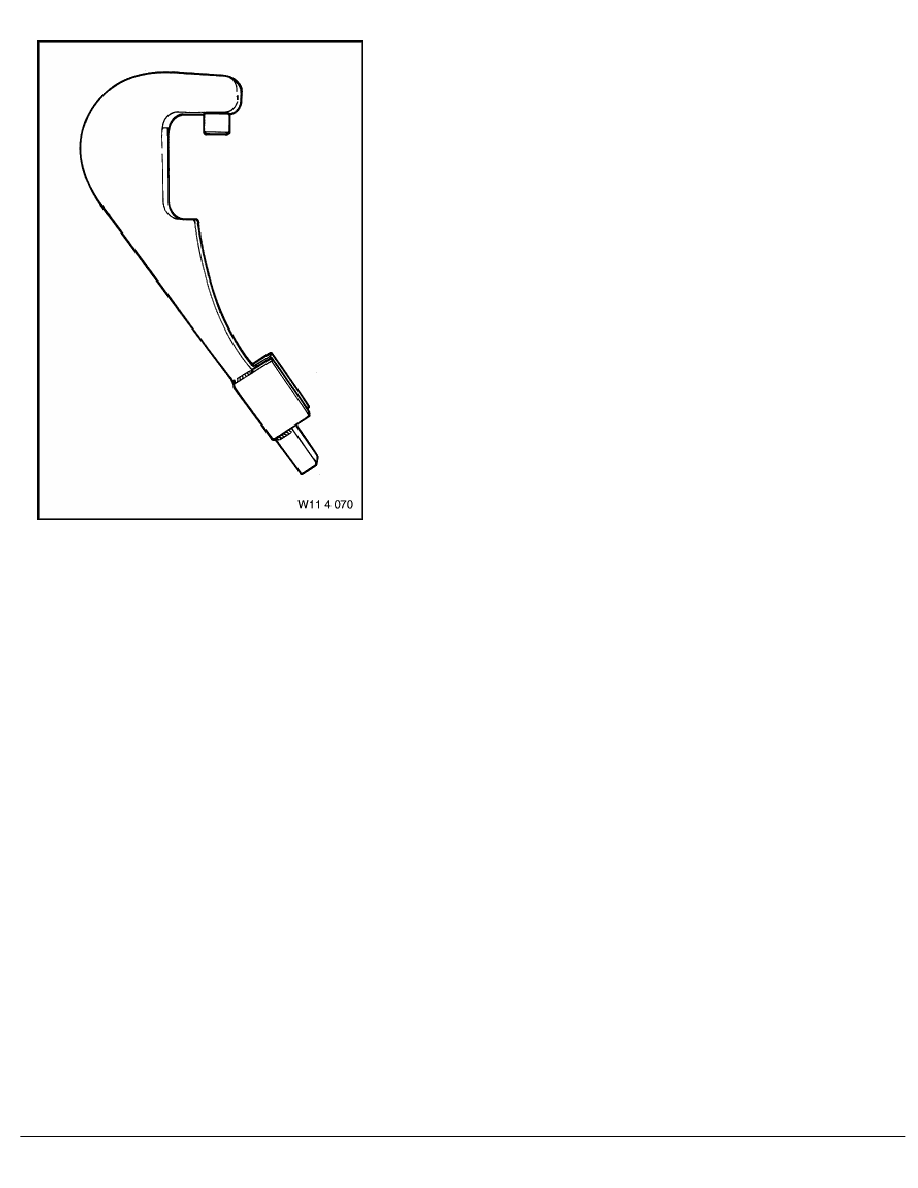

11 4 070

Fixture

Note:

For installing dipstick guide tube

Engine:

M10, M88, S38

Order number:

11 4 070

Fixture

SWZ Fixture

BMW AG - TIS

19.01.2013 20:34

Issue status (12/2007) Valid only until next DVD is issued
