3 Series E30 318i (M42) CONVER

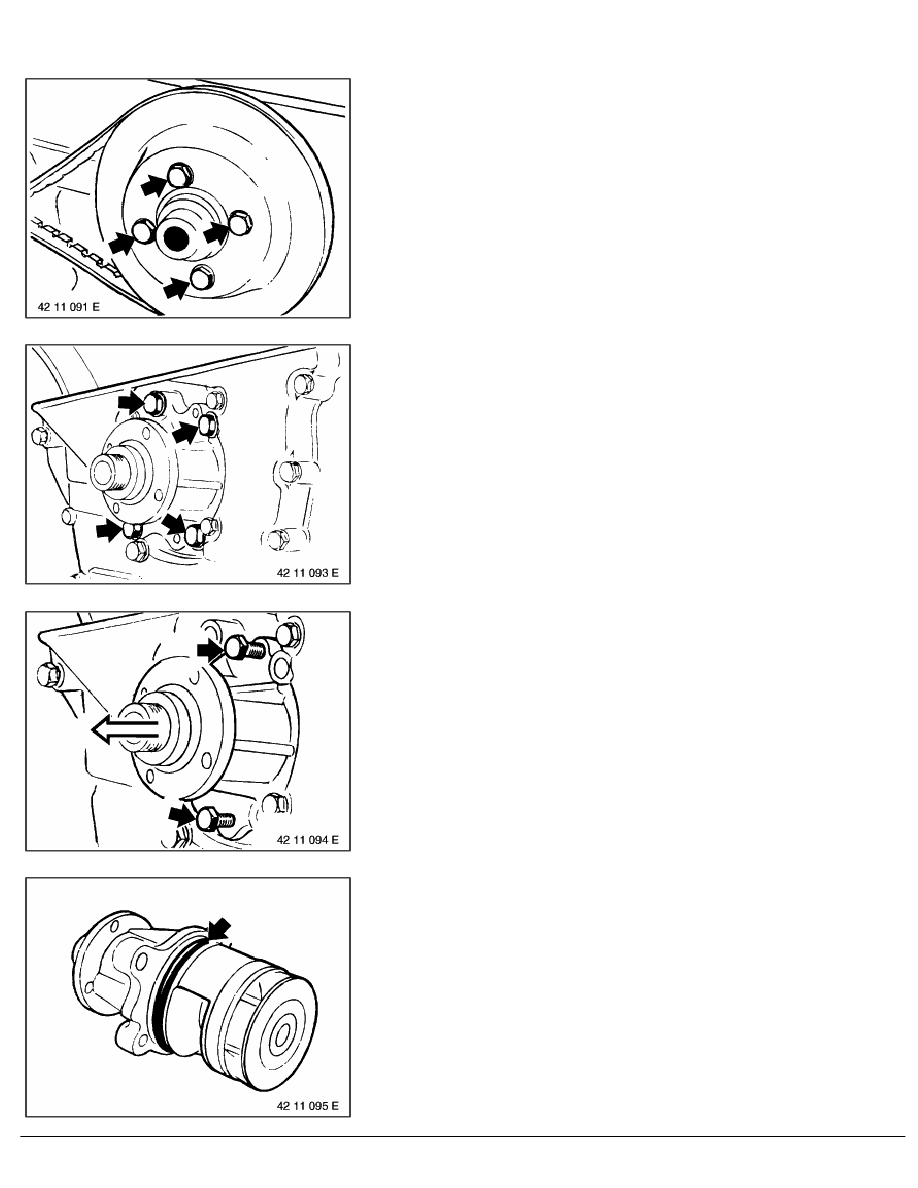

Removing water pump (M42)
Hold pulley tight on drive belt and unscrew bolts.
Installation:
Tightening torque 9 Nm.
Unscrew bolts.
Installation:
Tightening torque 9 Nm.
Tighten 2 M6 screws into the thread and force water pump evenly
out of end cover.
Installation:
Replace and lubricate O-ring with a lubricant (refer to BMW
Parts Service).
Tightening torque 9 Nm
RA Removing water pump (M42)
