Replacing / checking piston rings (M42)

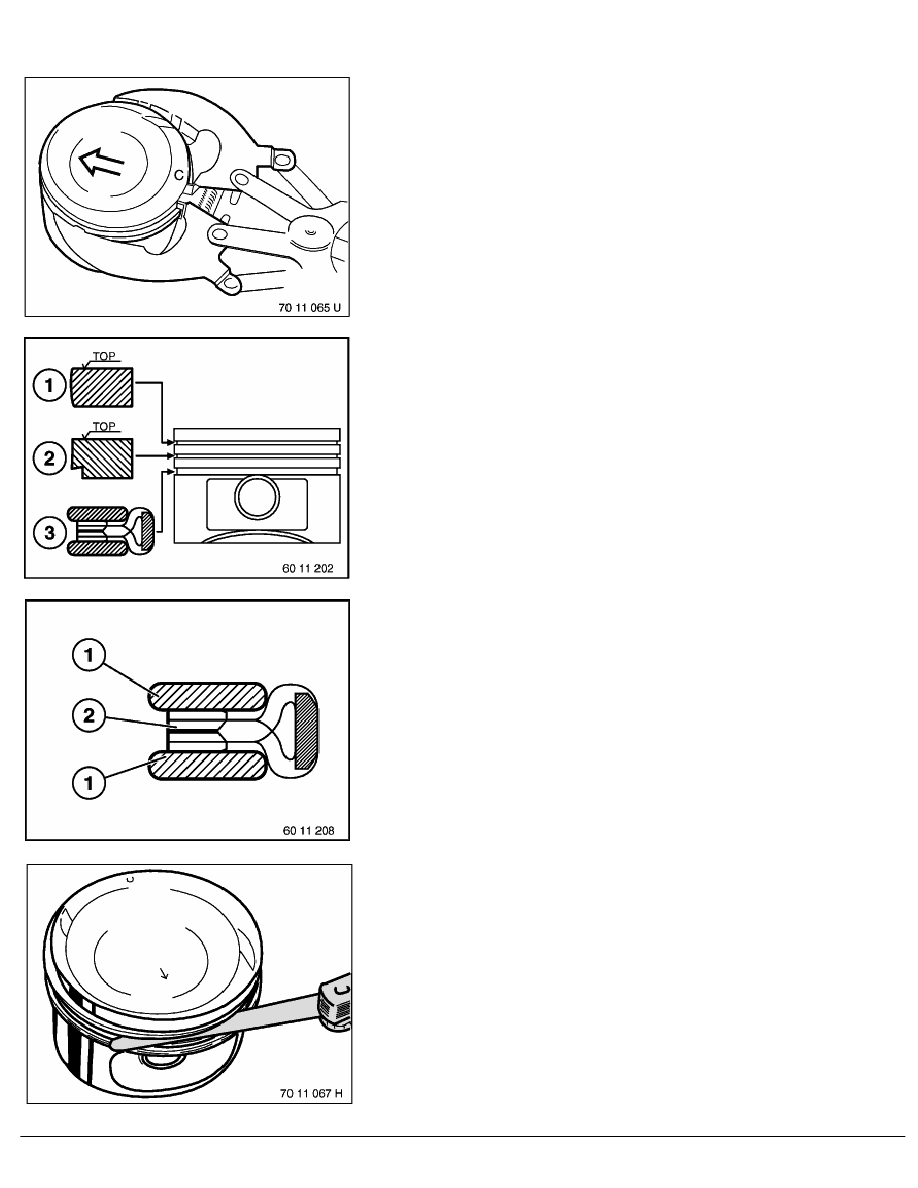

Remove piston rings with a piston-ring compressing pliers.
Note:
It might not be possible to find the identification on used
piston rings.
Lay piston rings to one side in correct sequence and
installation position.
Installation:
Insert piston rings with "TOP" facing piston crown.
1 - Rectangular section ring
2 - Taperface ring
3 - Steel band ring (oil scraper ring)
Arrange piston ring contact points with offset of approx. 120
°
to
one another - but not over piston pin eye.
Installation:
The oil scraper ring consists of two steel band rings (1) and
one spring ring (2).
Install all parts separately.
Offset contact points at approx. 120
°
intervals.
Measure side clearance:
Specification, refer to Technical Data
