3 Series E36 316g (M43) COMP
13 85 500
Removing and installing/replacing CNG filler
connection (E36)
Drain CNG system,
refer to section on draining the CNG system

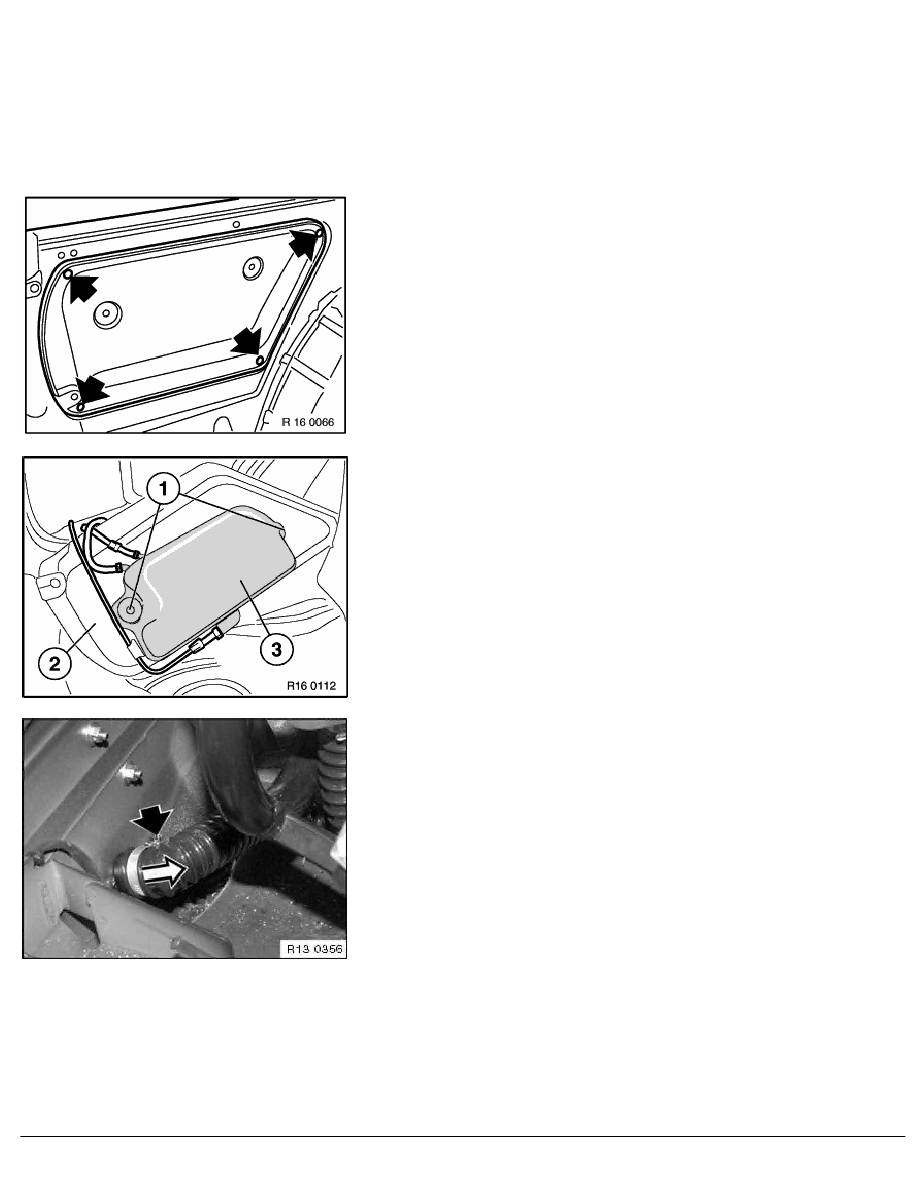

Remove rear right side trim panel.
Unscrew and remove cover.
Unfasten nut (1), remove cover (2) and place expansion tank (3)
to one side.
Unfasten hose clip and pull back hose sheath.
RA Removing and installing/replacing CNG filler connection (E36)
BMW AG - TIS
17.01.2013 12:52
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
