3 Series E36 316i (M40) SAL
Removing drive belt (M40)

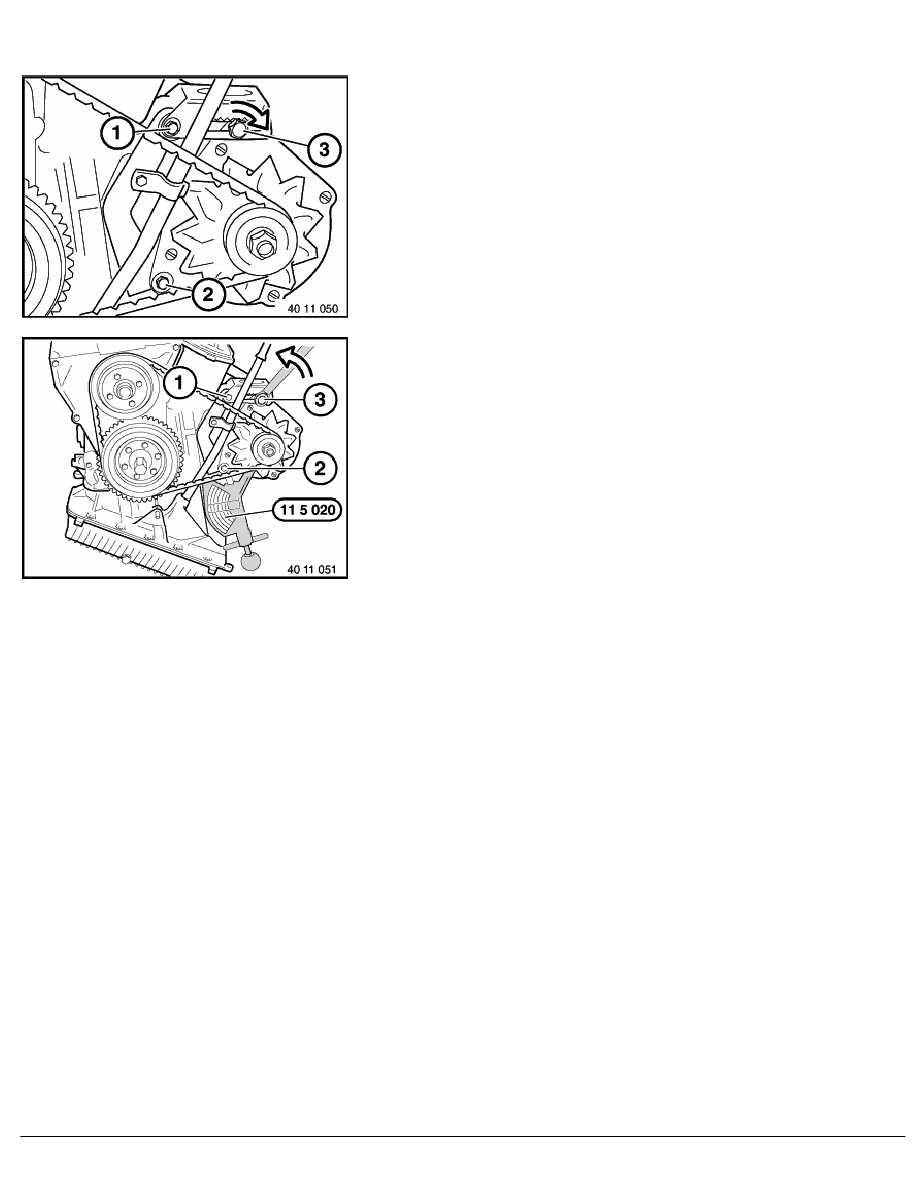

Loosen bolt (1).
Loosen nuts on bolts (2 and 3) and loosen drive belt by turning
bolt (3) in direction of arrow.
Take off drive belt.
Installation:
Adjust Vee belt tension with special tool 11 5 020 by
rotating screw (3) in direction of arrow.
Tighten nuts on screws (3 ... 2) and screw (1).
