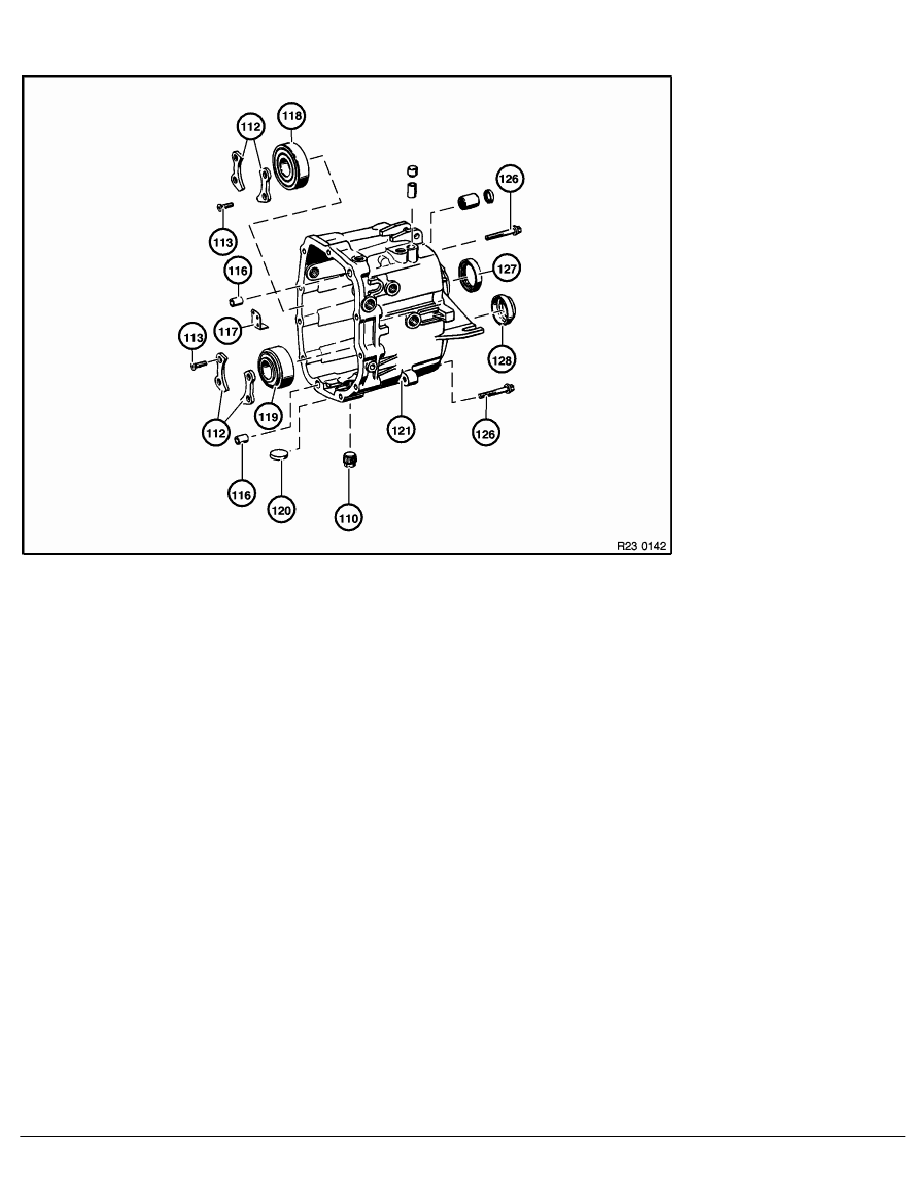

Transmission arrangement, rear section (S5D 260Z / 310Z / 320Z)

116 Sleeves

117 Plate

118 Ball bearing

119 Ball bearing

120 Magnet

121 Rear case section

122 Cap

123 Sleeve

124 Ball sleeve

125 Radial sealing ring

126 Bolts

127 Radial sealing ring

128 Cover
