3 Series E36 316i (M43) COUPE
11 61 040
Removing and installing manifold upper
section (M43)
Remove Bowden cable for throttle actuation from throttle,
refer to 35 41 421.
Drain coolant.
Installation:
Vent cooling system and check for leaks,
refer to 17 00 039.

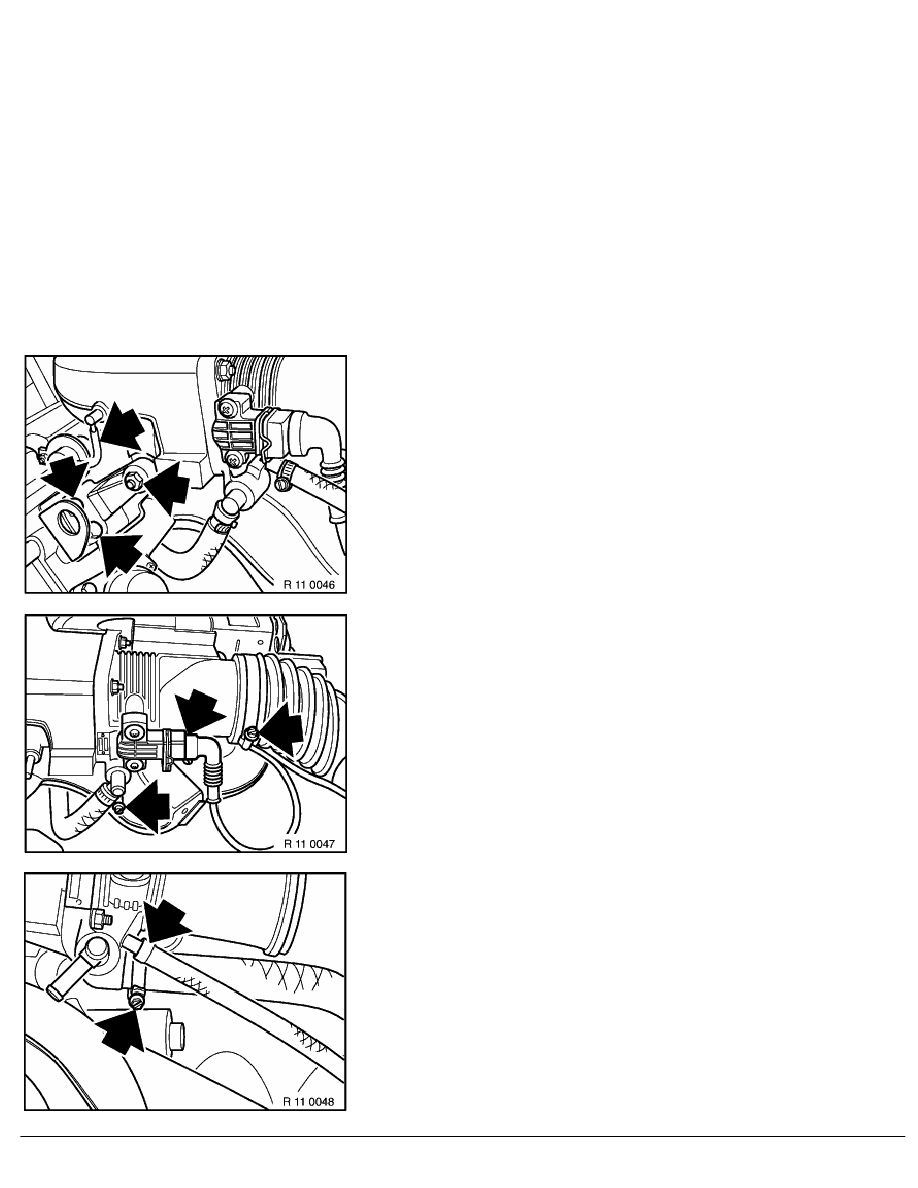

Remove front collector support.
Remove vacuum hose.
Release rubber boot.

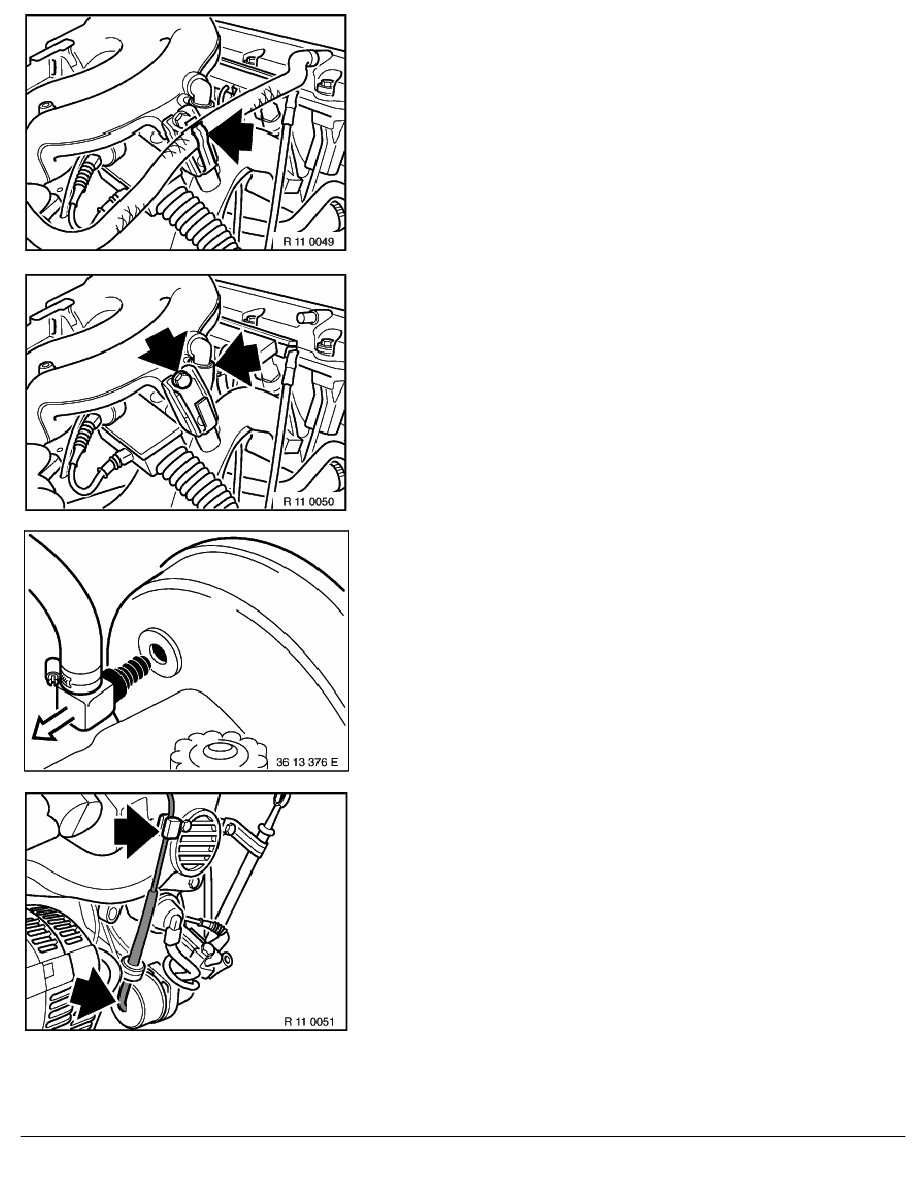

Remove connector for throttle potentiometer.
Release hose between heating return pipe and throttle housing.
Pull off hose for tank ventilation.
Release hose between pressure-control valve and throttle
housing.
RA Removing and installing manifold upper section (M43)
BMW AG - TIS
19.01.2013 11:44
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
