3 Series E36 316i (M43) COUPE
Installation:

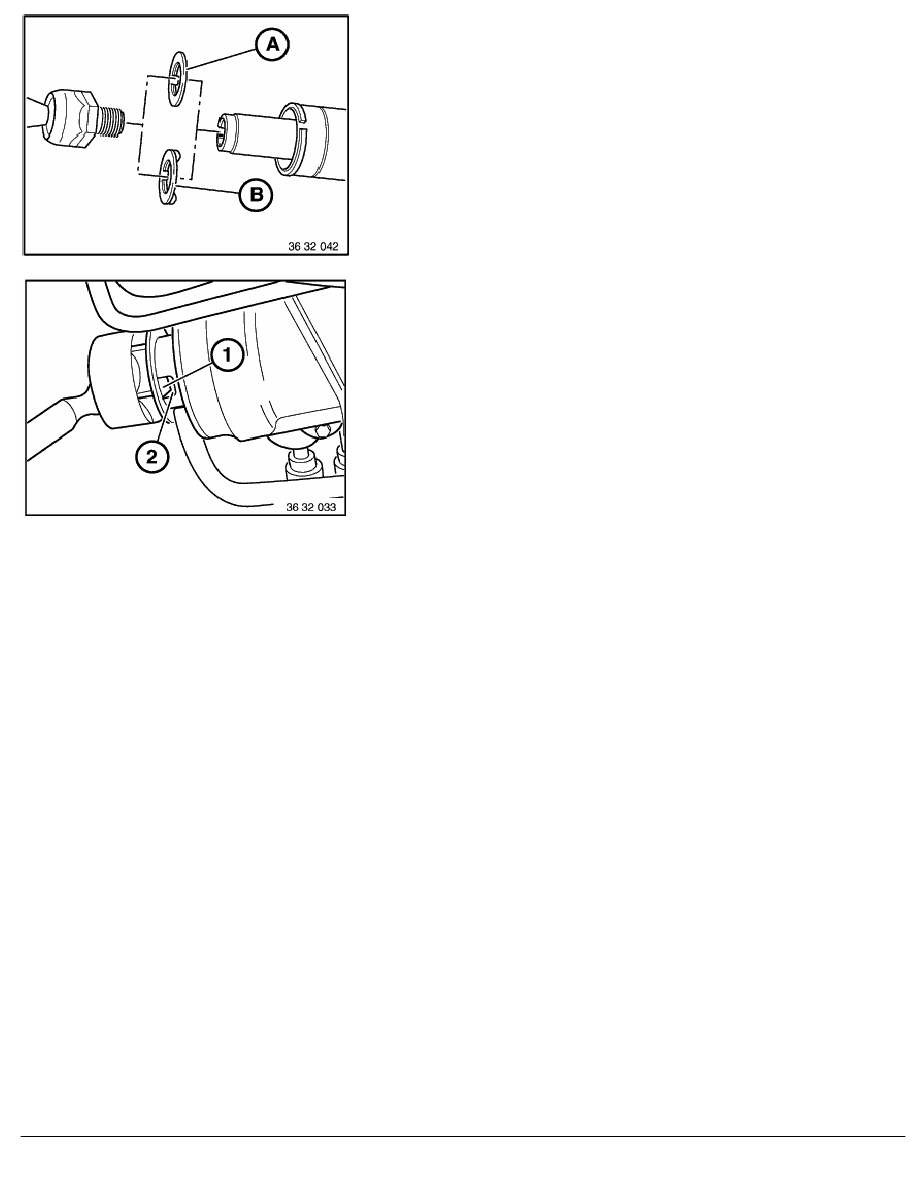

Replace lockplate (A or B); not steering gear manufactured by
TRW (Z3).
If lockplate (B) (with spacer to limit steering angle) is installed, new
lockplate must also be fitted with a spacer.
Turning lock (1) must engage in groove (2) of rack.
Tightening torque,
refer to Technical Data 32 21 2AZ.
Bend lockplate with pliers.
Replacing track rod end,
refer to 32 21 151.
RA Replacing left or right tie rod
