3 Series E36 316i (M43) COUPE

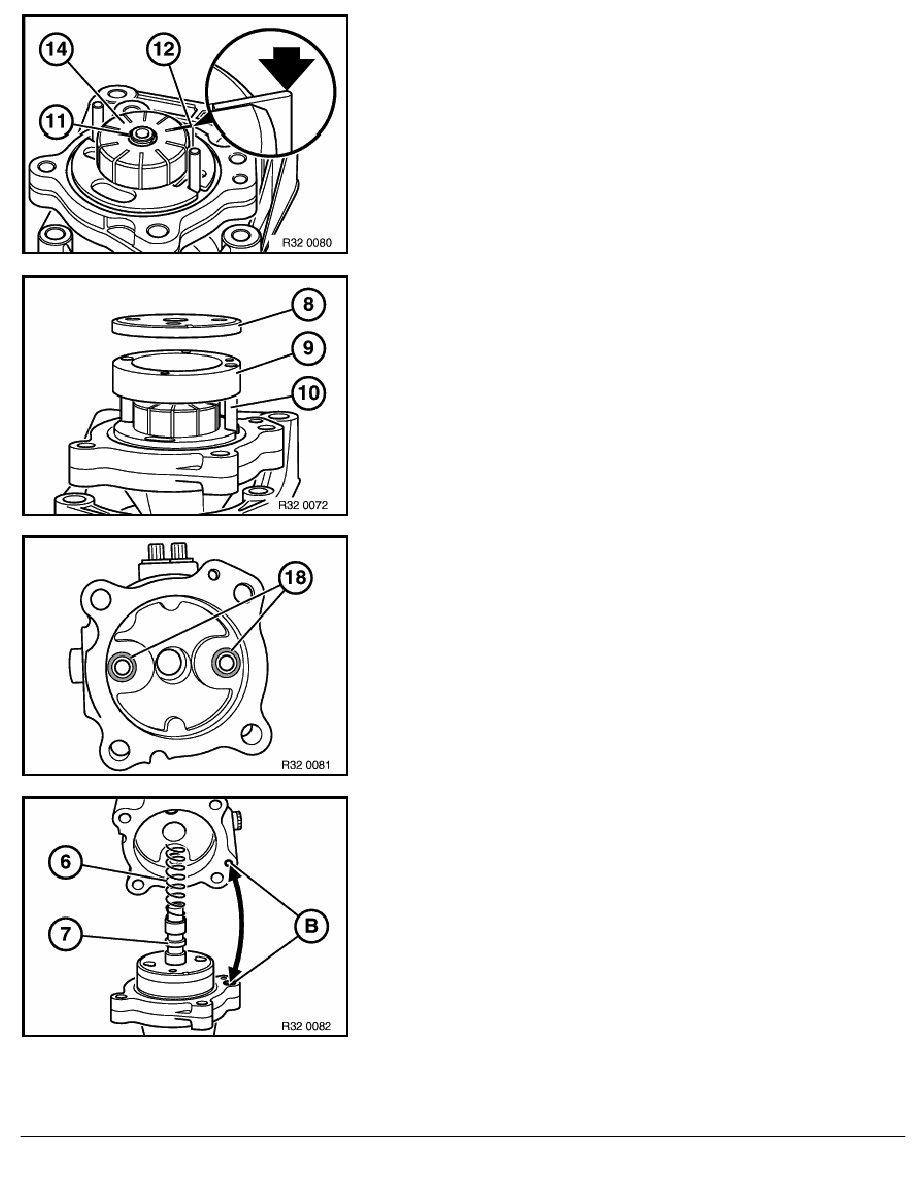

Fit rotor (14) to shaft and install new retaining ring (11).
Install all blades (12) with rounded side facing outwards.
Check that impeller moves easily.
Fit rotor ring (9) and pressure plate (8) to cylindrical pins (10).
Install new O-rings (18).
Fit valve piston (7) and spring (6) and join together the case
sections.
Note:
Note installation location of bore (B).
RA Dismantling and assembling vane pump (LuK/Vickers pump)
