5 RA Removing And Installing Or Replacing Final Drive (Compact, Z3)|Page 1404 > < 5 RA Removing And Installing Or Replacing Final Drive (Compact, Z3)

3 Series E36 316i (M43) COUPE

Page 2
background image

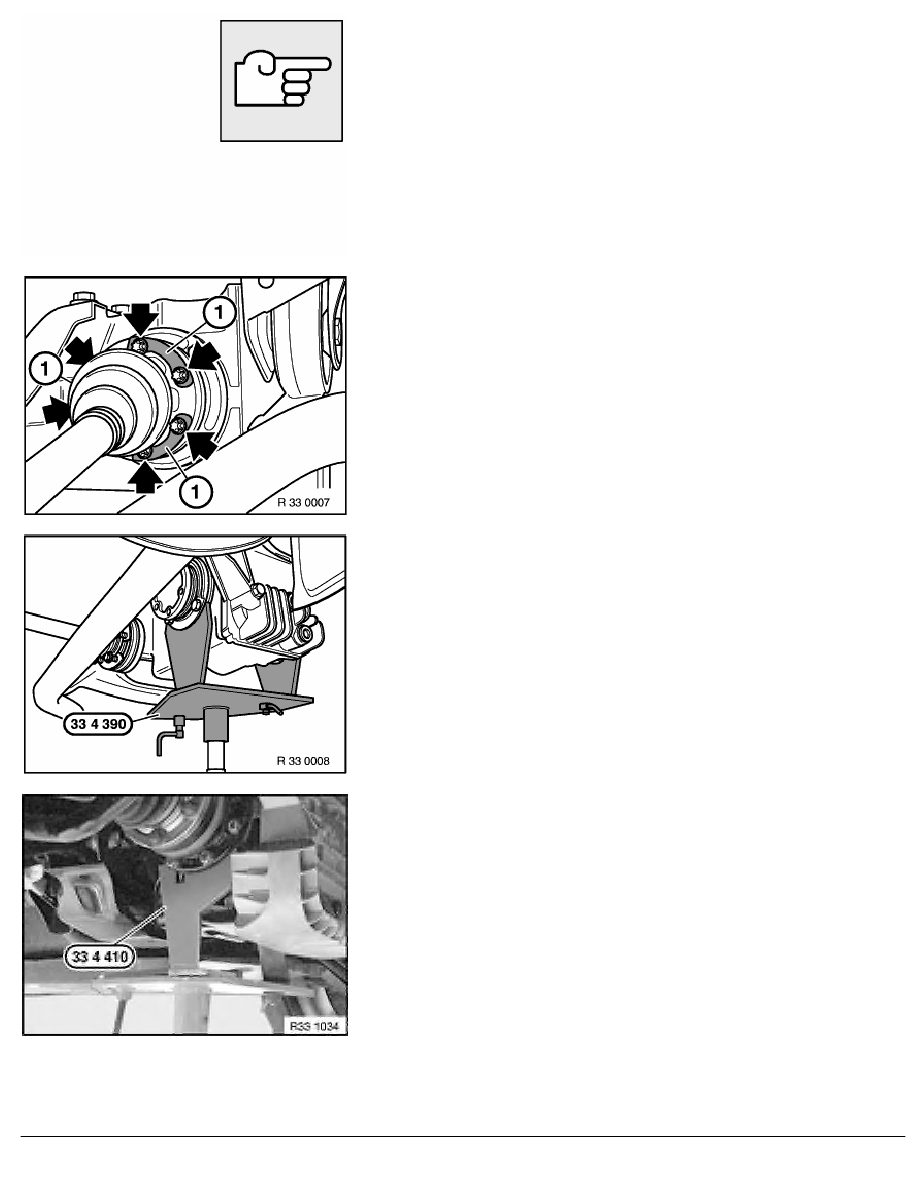

Remove propeller shaft from drive flange.

Disconnect cable plug from pulse generator speedometer.

Release screws.

Tightening torque, 33 21 1AZ.

Remove output shafts and tie up.

Installation:

Fit shims (1).

Support final drive with transmission hoist and special tool
33 4 390.

E36 / S54 (Z3):

Support final drive with transmission hoist and special tool
33 4 410 .

RA  Removing and installing or replacing final drive (Compact, Z3)

BMW AG - TIS

19.01.2013  14:02

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 2 -

5 RA Removing And Installing Or Replacing Final Drive (Compact, Z3)|Page 1404 > < 5 RA Removing And Installing Or Replacing Final Drive (Compact, Z3)
