3 Series E36 316i (M43) COUPE

Page 2
background image

Compact

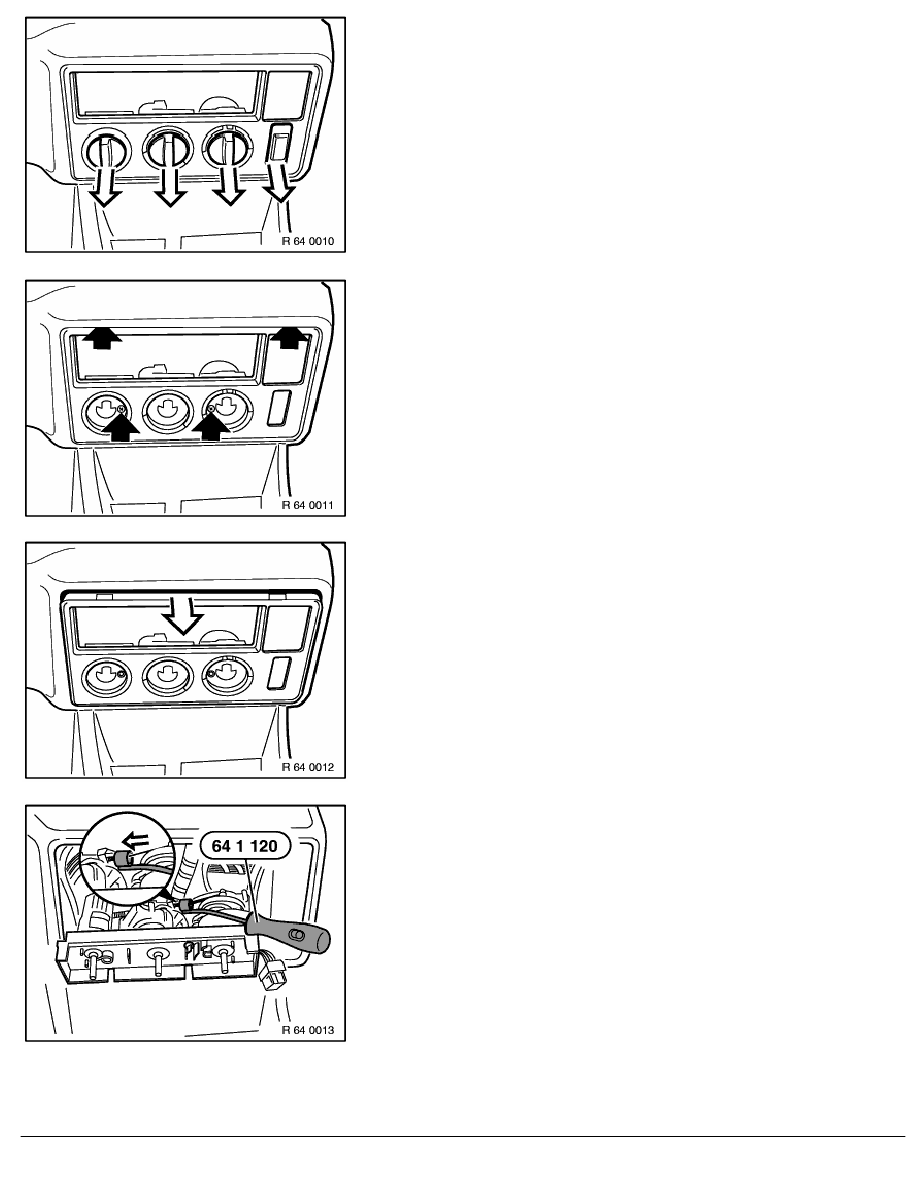

Remove clock,

refer to 62 13 050.

Press out switch for rear windscreen heating. Pull off control
knobs.

Unfasten screws.

Pry off front plate.

Unclip Bowden cables with special tool 64 1 120 and
disconnect.

Pull off blower switch connector and take out heater controls.

RA  Removing and installing heater controls (heating or a/c control)
