3 Series E36 316i (M43) SAL
31 2 150
Fixture
Minimum set: Mechanical tools
In conjunction with:
00 7 500
Note:
For removing and installing rubber mount in
front control arm
Series:
E30, E36, E46, E85, E86
Storage location:
A17, A38, B17, C36
Order number:
31 2 150

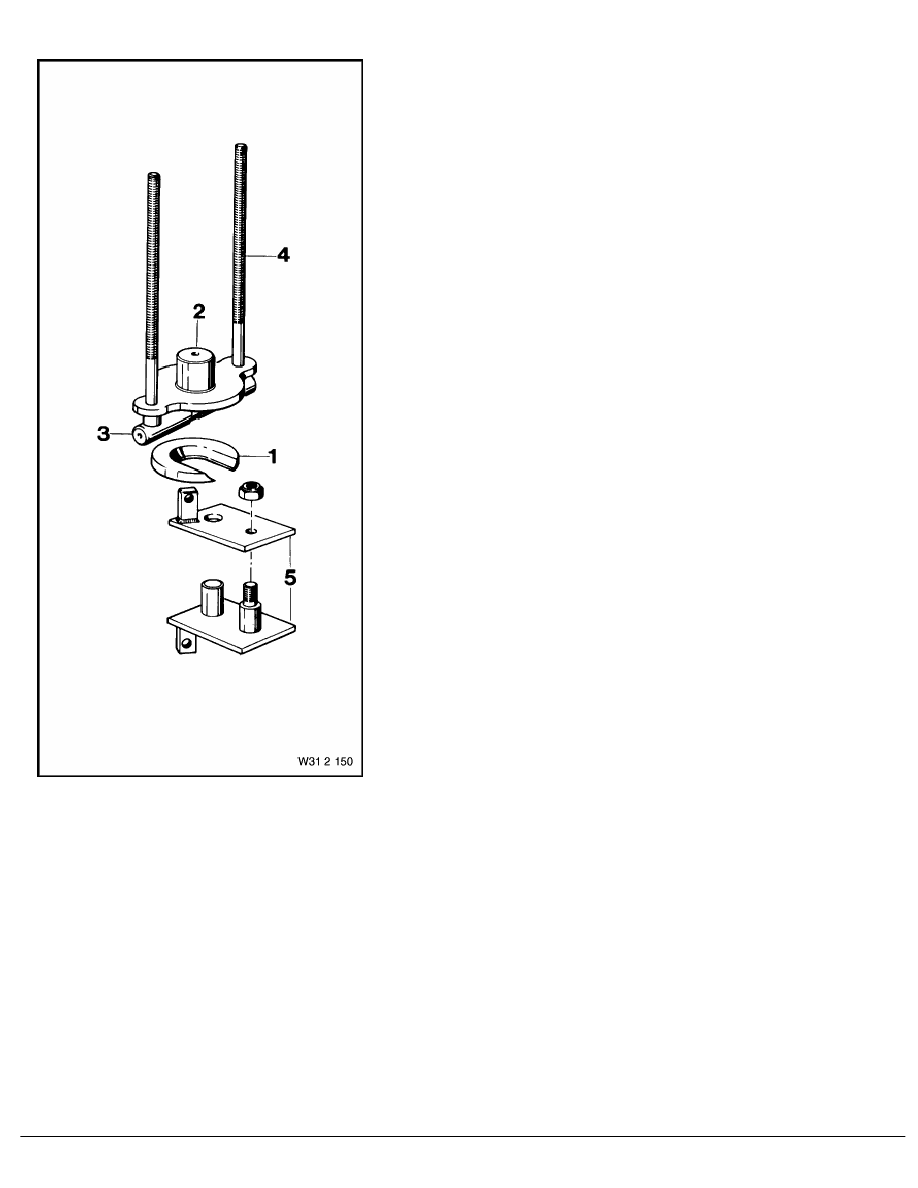

Fixture
Consisting of:
1 = 31 2 151
Plate
Note: Model series: E30, E36, E46, E85
2 = 31 2 152
Thrust piece
Note: Model series: E30, E36, E46, E85
3 = 31 2 153
Counter-holder
Note: Model series: E30, E36, E46, E85
4 = 31 2 154
Spindle (2 x)
Note: Model series: E30, E36, E46, E85
5 = 31 2 155
Take-up bridge
Note: 4WD Model series: E30, E36, E46,
E85
6 = 31 2 156
Counter-holder, diameter 79 mm
Note: For installing rubber mount on control
arm Model series: E46
In conjunction with: 00 7 500
7 = 31 2 157
Thrust piece, diameter 79 mm
Note: For installing rubber mount on control
arm Model series: E46
In conjunction with: 00 7 500
8 = 31 2 158
Adapter feet
Note: Model series: E46
SWZ Fixture
