3 Series E36 316i (M43) SAL
61 2 070
Cable set
Minimum set: Measuring and testing equipment
Note:
For performing installation and adjustment
work with front seat with electric seat
adjustment removed 61 2 071 for
activating removed convertible top E85 and
R52
Series:
E31, E36, E38, E46, E52, E60, E61, E65,
E66, E85, R52, RR1
Storage location:
R 204, R 205, R 206, R 207
SI number:
2 12 91(450)
Order number:
61 2 070
Cable set

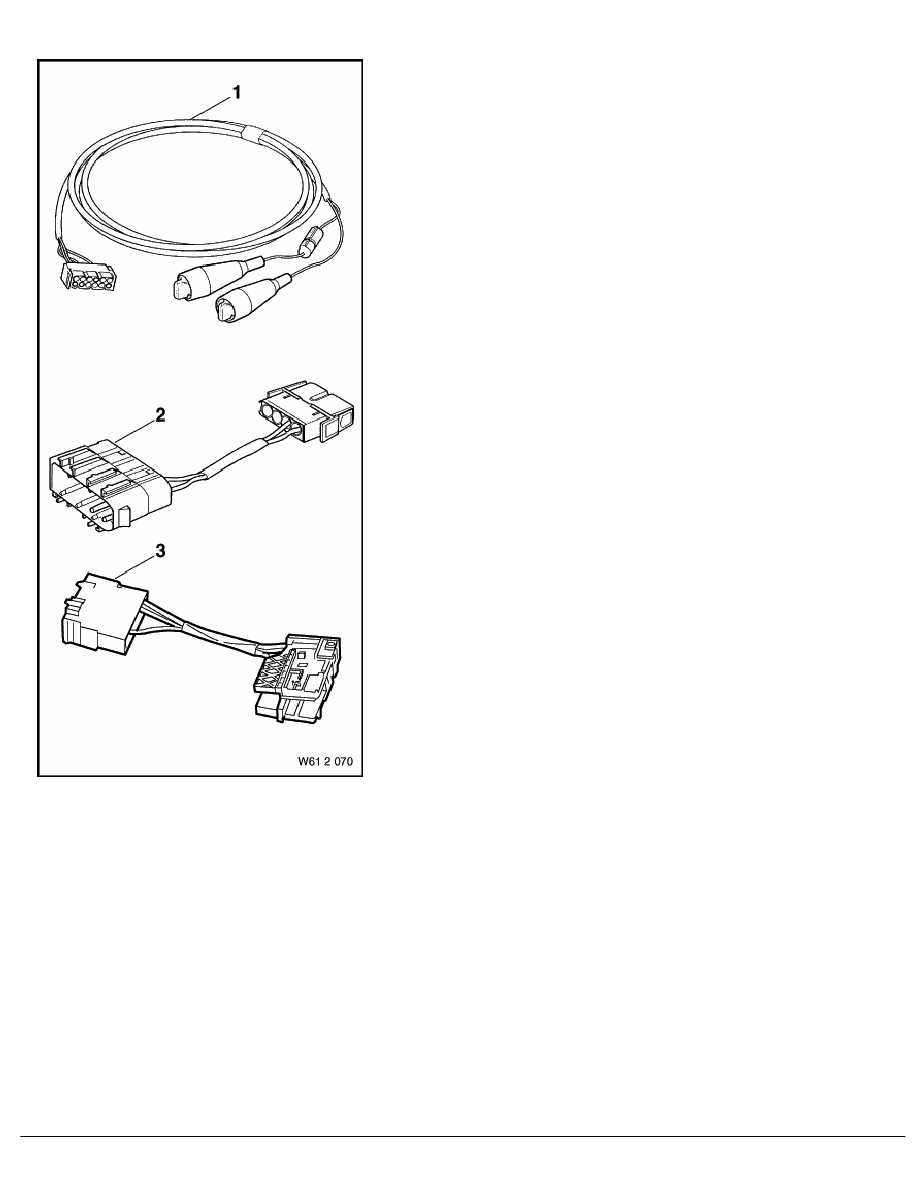

Consisting of:
1 = 61 2 071
Power supply cable
Note: Connection between a battery and
different adapter cables
2 = 61 2 072
Adapter cable
Note: Model series: E36
3 = 61 2 073
Adapter lead
Note: Model series: E38
In conjunction with: 61 2 071
4 = 61 2 074
Adapter lead
Note: Model series: E46, E52
In conjunction with: 61 2 071
SWZ Cable set
