3 Series E36 316i (M43) SAL
![background image](/bmw/3_Series_E36/316i_M43_SAL/page-423003.png)

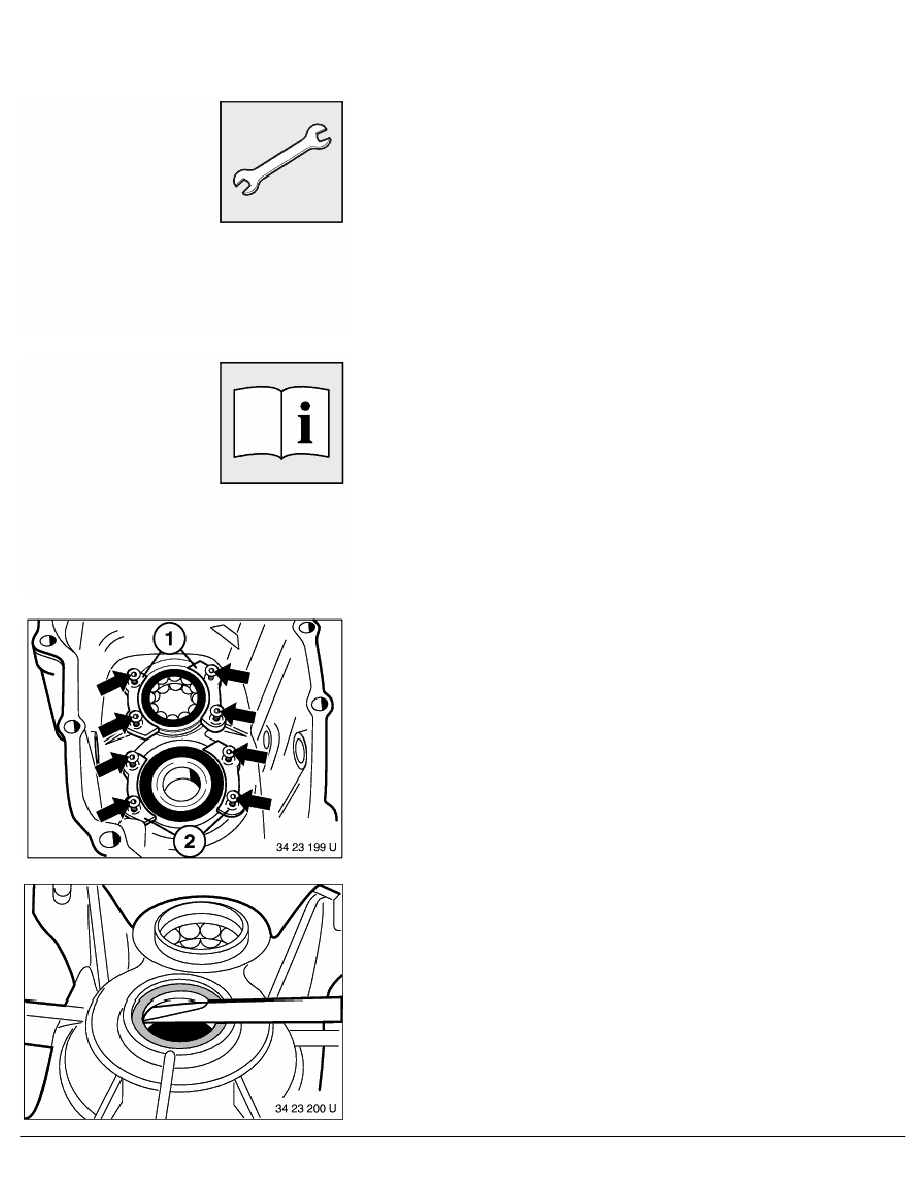

Install retaining plates.
Install screws with screw retaining compound, refer to BMW Parts
Service, and tighten down.
Tightening torque, 23 11 17AZ.
For replacement of bearing inner race (2), 3rd/4th gear wheel
must be pressed off with special tool 23 2 310 .
For removal, refer to Replacing synchronizing mechanism, 3rd/4th
gear.
Bearing in front housing section.
Drive shaft:
Release screws.
Remove retaining plates (1).
Heat housing in area of ball bearing to approx. 80
°
C (hot-air
blower).
Withdraw ball bearing (2), if necessary drive out with special tool
23 1 440 from outside to inside.
RA Replacing bearings on all transmission shafts (S5D 260Z / 310Z / 320Z)
BMW AG - TIS
20.01.2013 05:01
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 3 -
