3 Series E36 316i (M43) SAL
Slide special tool (1) included in repair kit over the rectangular ring
until special tool (1) locates against idler housing (3).
During subsequent work, do not remove special tool (1) from
turbine shaft (2).
Note:
The special tool (1) must remain fitted for at least 5 minutes to
ensure that upper rectangular ring is pressed into groove.
Installation:
Remove special tool (1).
Lift turbine shaft (1) with idler (2), spacer ring (3) and disc pack (4)
out of intermediate case (5).
Installation:
Install spacer ring (1) in intermediate case (2).
Recess in spacer ring points towards oil pan.
Installation:
Install disc pack in intermediate case (3).
1
Lined discs
2
Steel discs

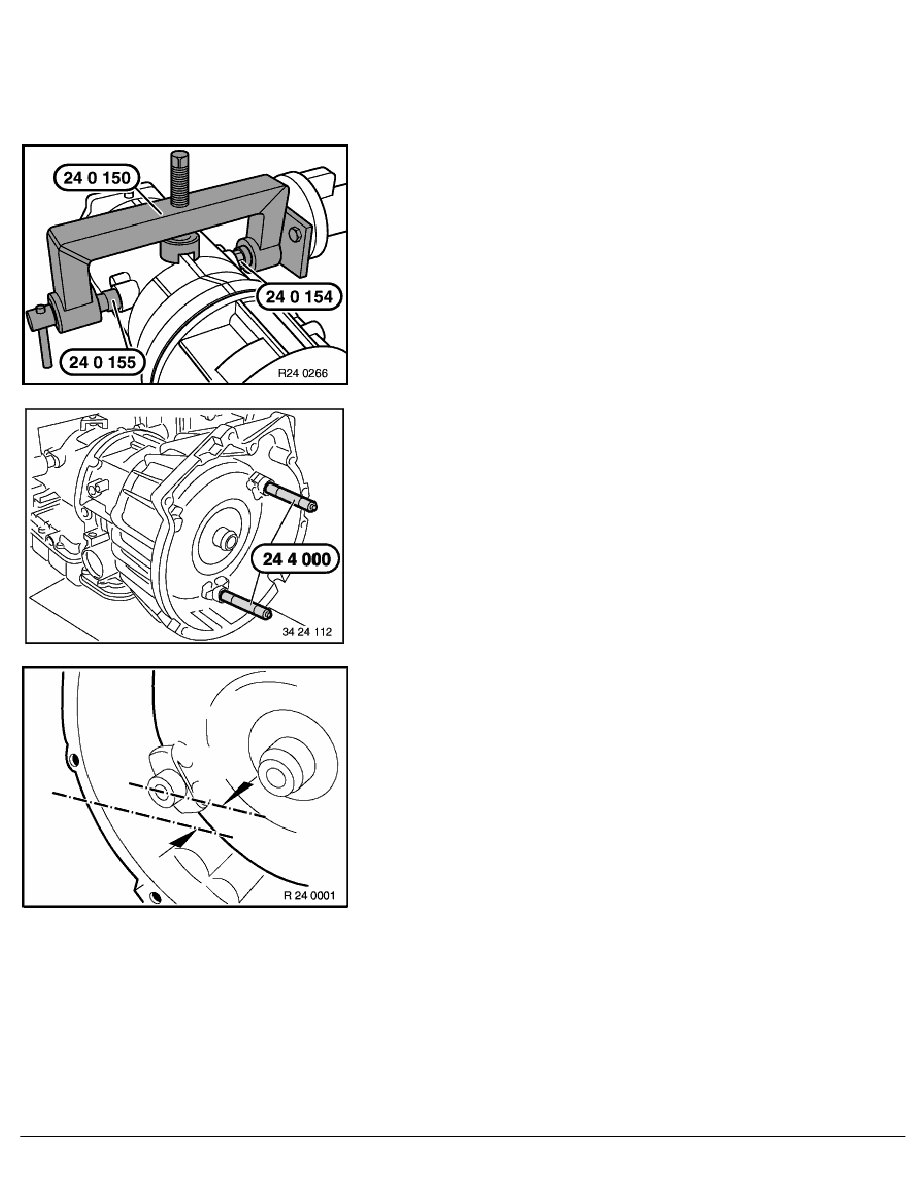

RA Removing and installing/sealing converter bell housing (A4S 270R/310R)
