3 Series E36 316i (M43) SAL
Installation:

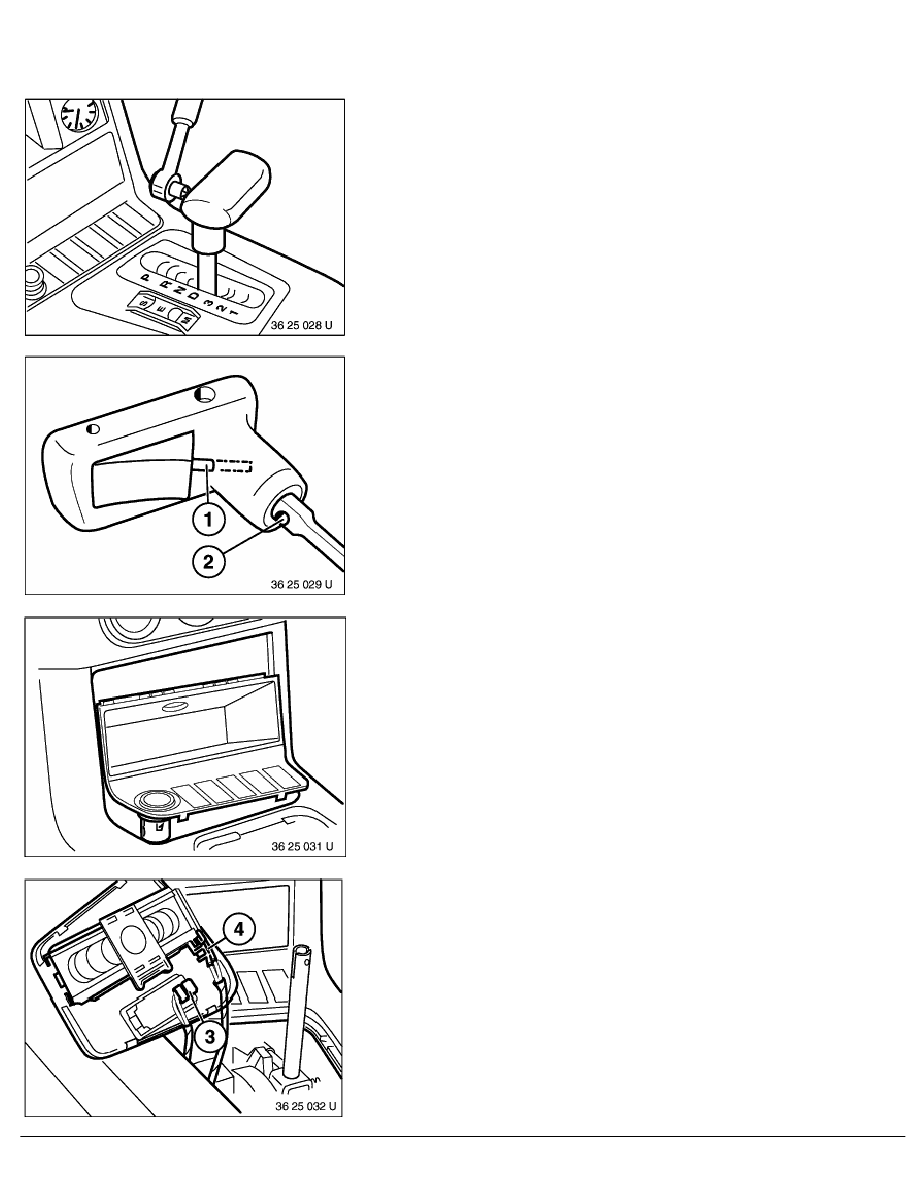

Adjusting display slide of trim:
-
Press adjuster (1) of display slide (2) against stop (3).
-
Position opening of trim (4) over opening of display slide (2).
-
Move preselector lever to "N" (NORMAL) position.
-
Insert trim on preselector lever and install.
-
Move preselector lever to "P" (PARK) position.
-
Display slide (2) is now adjusted.
Pull plug (6).
Lever out retainer (7).
Remove cable from counter support and detach towards front.
Unhook cable from eye.
Installation:
Insert turning lock with bore hole in nubs.
Mount cable in this position.
Remove retaining screws.
Tightening torque, 25 16 3AZ.
RA Removing and installing selector lever with mounting block
