3 Series E36 316i (M43) SAL
To ensure that the plate springs are not block-preloaded,
installation clearance of 0.1 ... 0.4 mm is required.
Example:
B (cover) 6.8 mm
C (plate spring) 3.6 mm
A (housing) 10.8 mm
Sum total of B + C 10.4 mm
Installation clearance D 0.4 mm
Correct any deviation in installed clearance D by installing outer
plates of correct thickness.

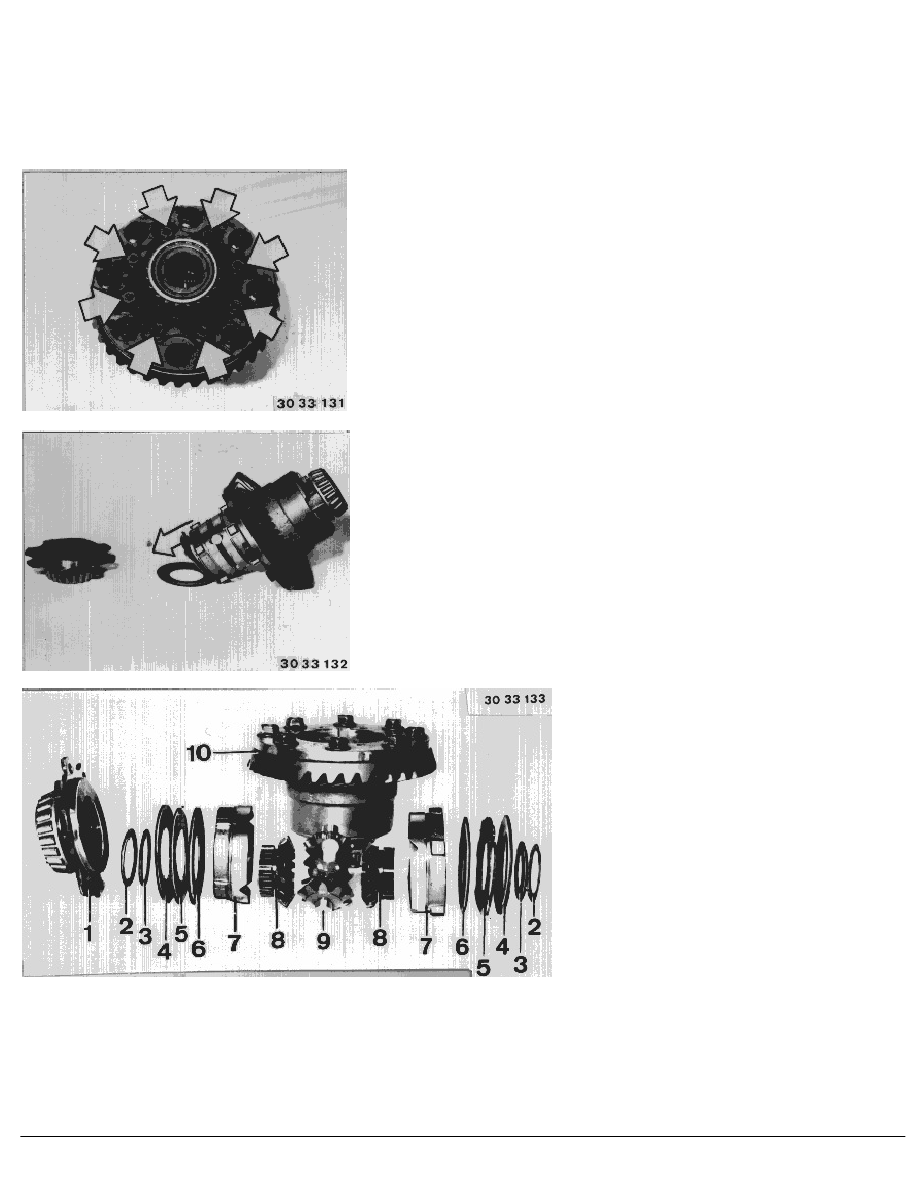

Remove all parts from case and insert with the additional parts,
diaphragm springs (2) and thrust washers (3). Mount case cover
(1) and press on firmly, but do not bolt.
The preload of small diaphragm springs (2) should produce an
uniform gap all around (check with feeler gage blade).
If there is no clearance between cover and case, check diaphragm
springs (2) and thrust washers (3).
