3 Series E36 316i (M43) SAL
86 10 ...
Removing entry profile section on loading
ramp, left, right and center
Caution!
Before drilling out rivets, drive in rivet pins with a punch.

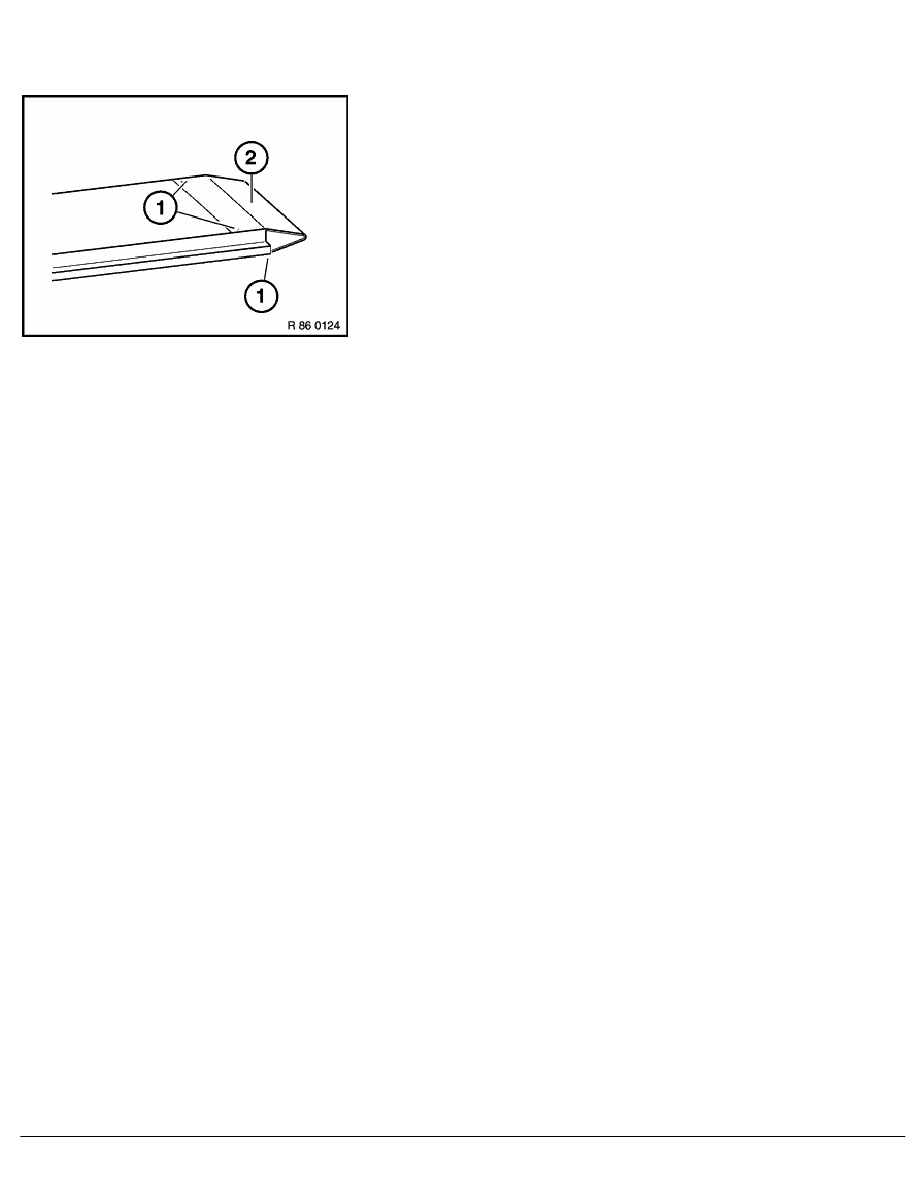

Drill out rivets (1). Remove entry profile section (2) towards front.
RA Removing entry profile section on loading ramp, left, right and center
