3 Series E36 316i (M43) TOUR - Removing and Installing Starter (M42, M43, M44) - Page 570
Releasing starter screw, working from below.
Installation:
For tightening torque, refer to Technical Data 12 41 1AZ

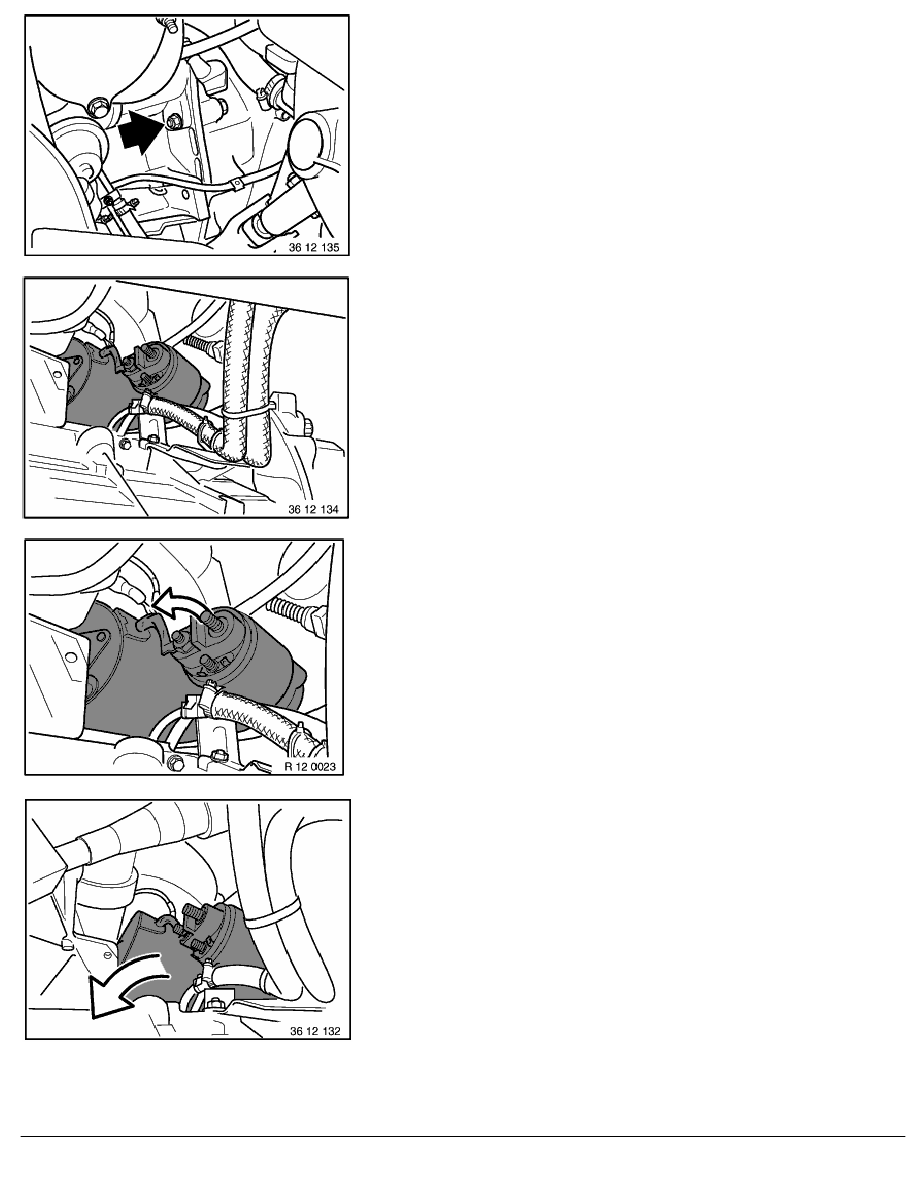

Remove starter in downwards direction.
Remove starter motor from crown wheel.
Turn starter until solenoid switch is at top.
Pivot starter down on its mounts.
Caution!
Do not damage leads!
RA Removing and installing/replacing starter (M42, M43, M44)
