Input and Output Shaft Removal and Installation for BMW E36 316i (M43)

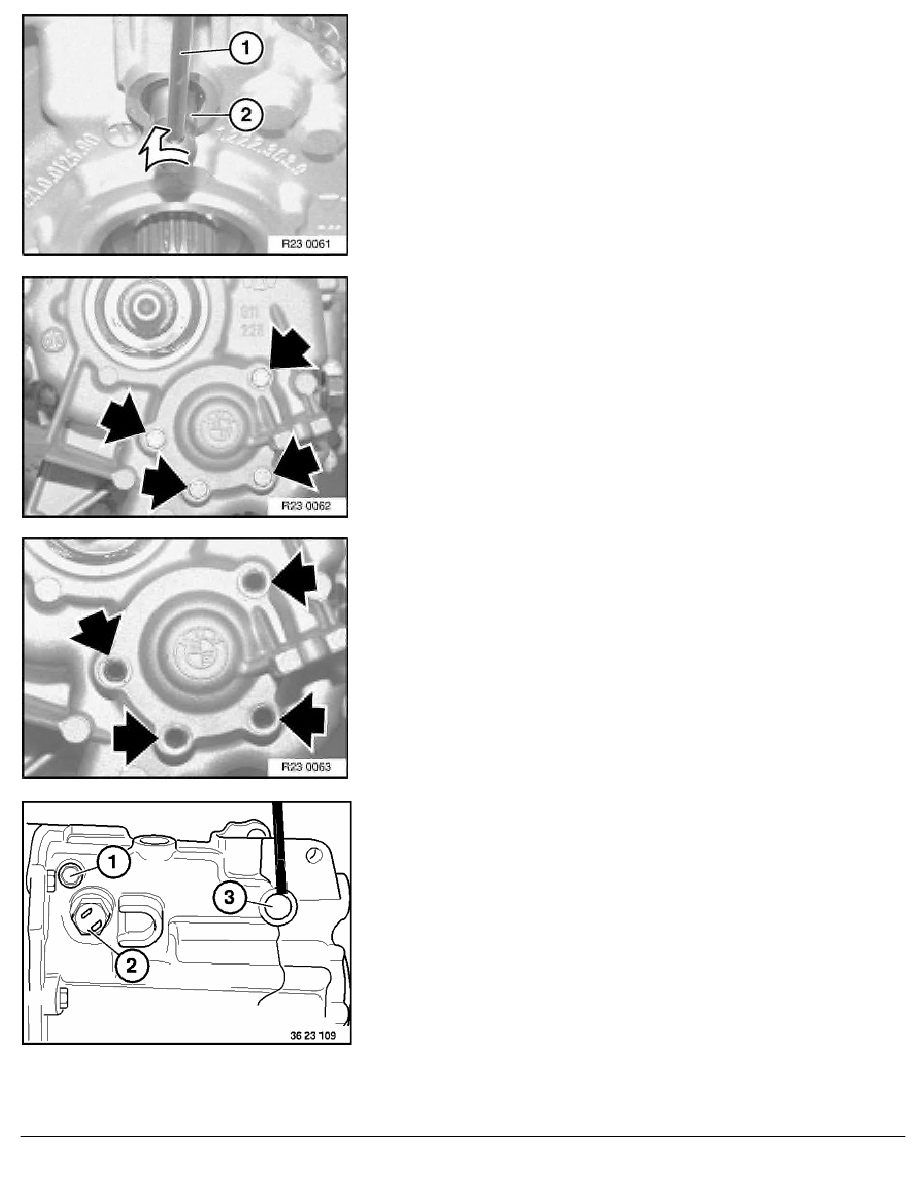

Shift into 2nd gear:
Insert splint driver or screwdriver (1) in bore of selector shaft (2).
Twist selector shaft (2) up to 1st left detent and press into the
transmission.
Unscrew bolts.
Remove sealing ring.
Unfasten screw (1) and reverse gear switch (2).
Lever out cap (3).
RA Complete removal and installation of input and output shafts (S5D 200G/ 250G)
