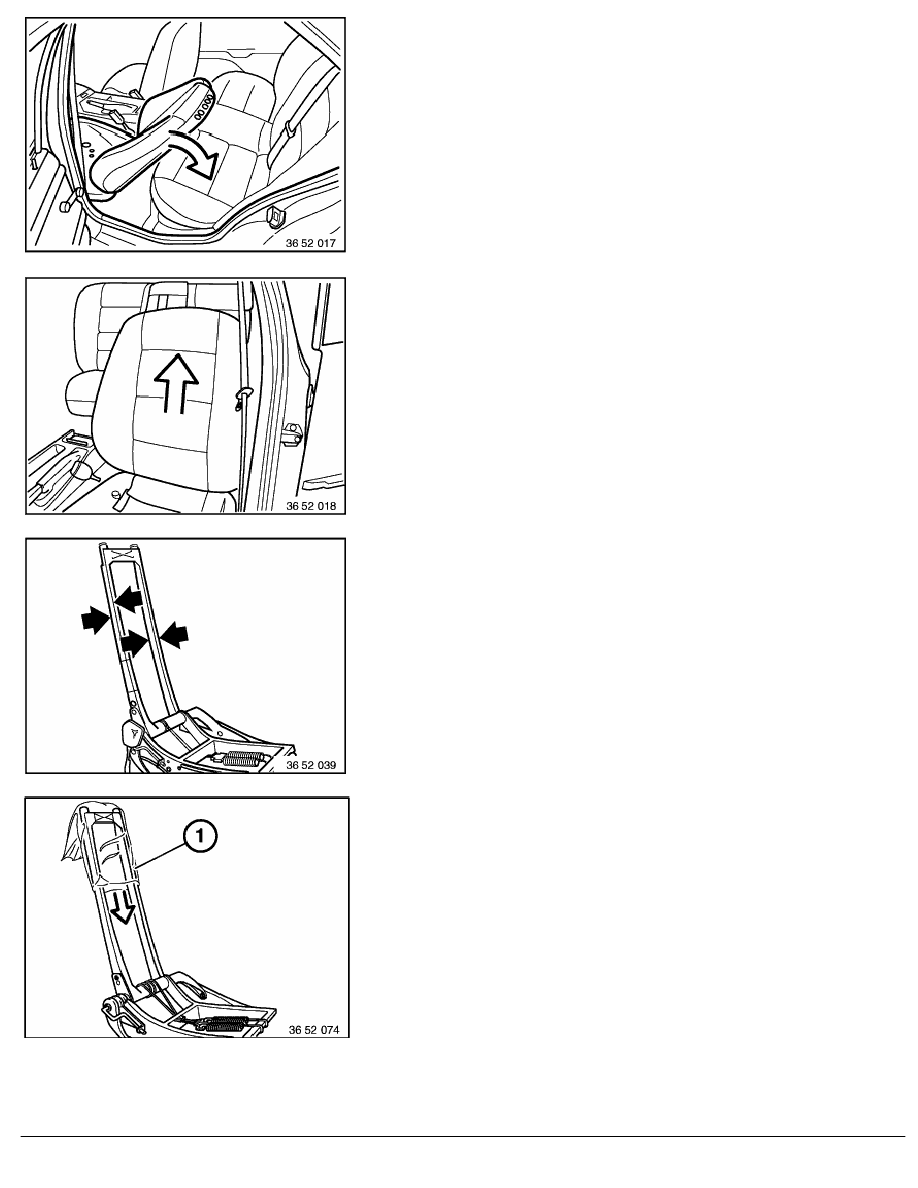

3 Series E36 316i (M43) TOUR
All models except compact:
Move backrest to 45
°
backwards angle.
Pull off backrest padding in upward direction.
Pull cloth sleeve or plastic sleeve out of the backrest padding as
applicable.
If applicable, clean dirtied backrest frame (to remove grease).
Installation:
Pull undamaged cloth sleeve (to prevent grinding noise) over
backrest frame.
RA Removing and installing/replacing backrest shell on left or right front seat
