3 Series E36 316i (M43) TOUR
52 20 075
Removing and installing/replacing side panel
on backrest for left or right rear seat (touring)
Removing cover from inertia reel seat belt,
refer to 51 37 261
Fold down backrest.

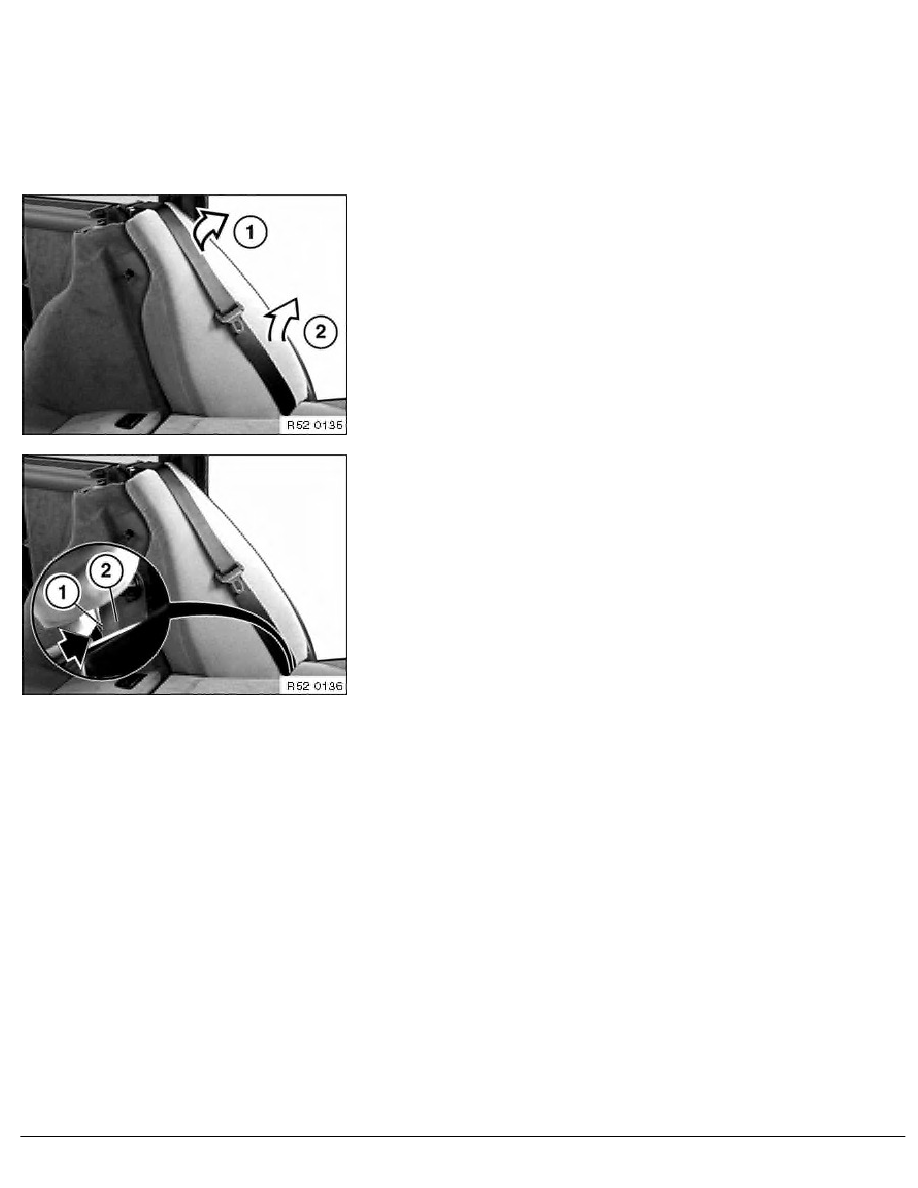

Lift (1) side section of back-rest upwards (2) to remove.
Installation:
Insert guide (1) in recess of finisher (2) and direct plastic
guide inwards.
