3 Series E36 316i (M43) TOUR
61 67 080
Removing and installing/replacing left or right
telescope for headlight cleaning system

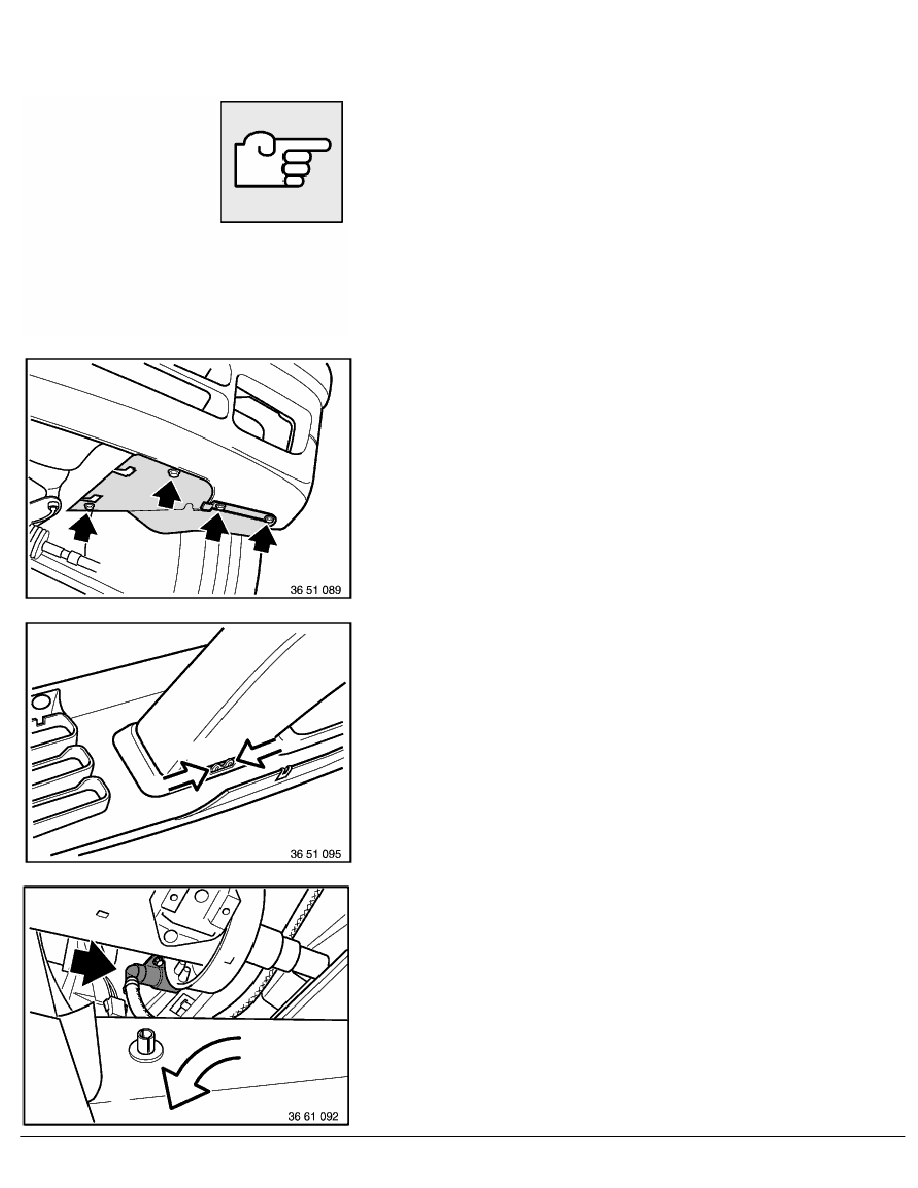

Removal
Removal of telescope is described separately from installation.
Release screws on bumper cover at side bottom.
Remove brake air duct.
Detach hose from telescope.
RA Removing and installing/replacing left or right telescope for headlight cleaning
