3 Series E36 316i (M43) TOUR
63 12 063

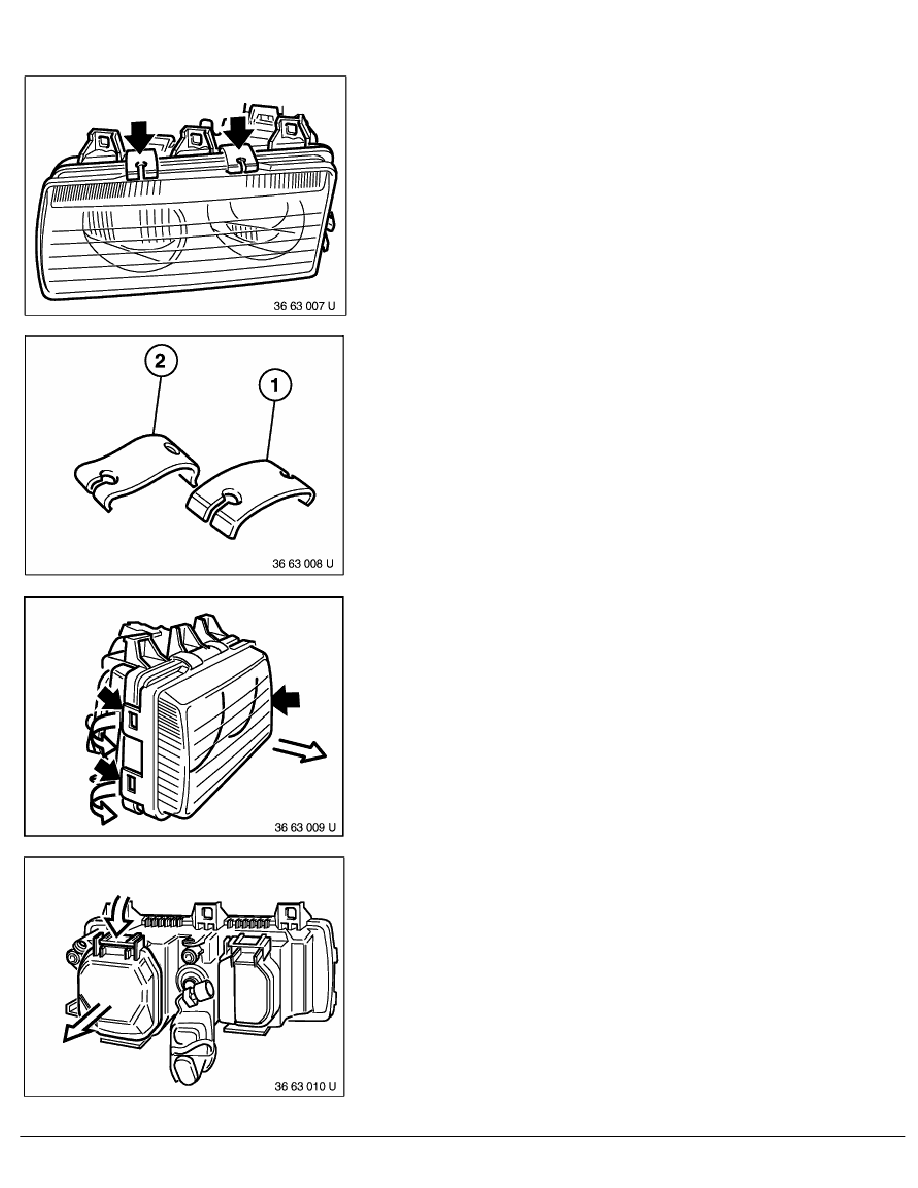

Replacing reflector for left headlight
Removing complete headlight, refer to
63 12 001
ZKW headlights:
Unclip at top and bottom.
Installation:
Different clips are used.
Bevelled clips (1) are installed at top.
Pry off holders on left and right sides and remove frame with lens.
Press down on clips and take off both bulb covers.
RA Replacing reflector for left headlight
