3 Series E36 318i (M40) SAL
13 31 ...

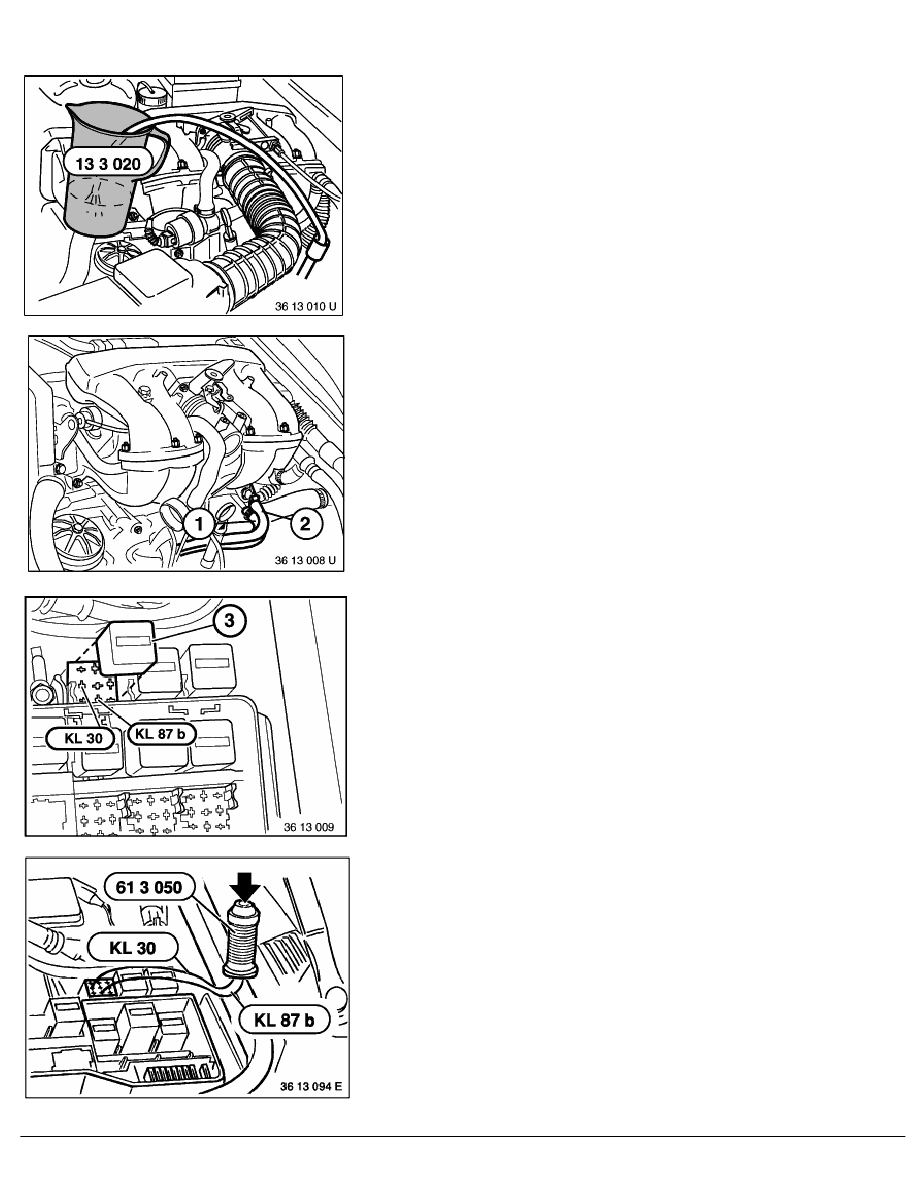

Checking fuel delivery rate (M40)
Unfasten fuel return line, attach an extension hose and collect in
measuring glass 13 3 020.
1.
Intake line
2.
Return line
Pull off fuel pump relay (3).
-
Term. 30: Battery positive
-
Term. 87b: Switched output to fuel pump
Connect special tool 61 3 050 to terminal 87b and terminal 30.
Press button and check fuel delivery volume,
refer to Technical Data.
RA Checking fuel delivery rate (M40)
