3 Series E36 318i (M40) SAL
13 54 030
Removing and installing throttle-valve
assembly (M40)

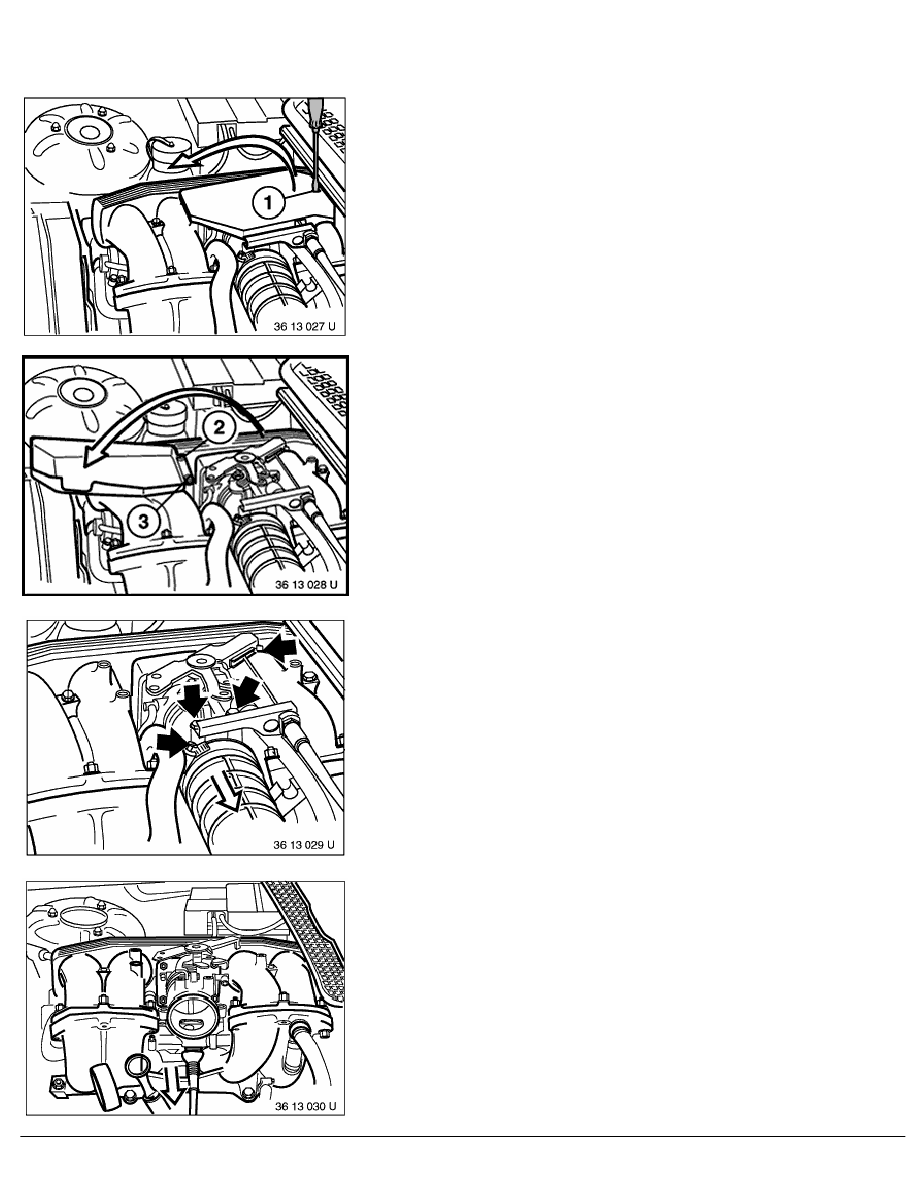

Unscrew bolt (1) and fold up plastic cap.
Unscrew screws (2 and 3).
Unclip cable (or cables).
Remove screws and take off holder.
Loosen hose clamp and remove gaiter.
Pull off connector from throttle-valve switch.
RA Removing and installing throttle-valve assembly (M40)
