3 Series E36 318i (M40) SAL
62 16 050
Removing and installing or replacing
telethermometer sensor (M40)
Note:
Drain off some coolant, refer to 17 00 039

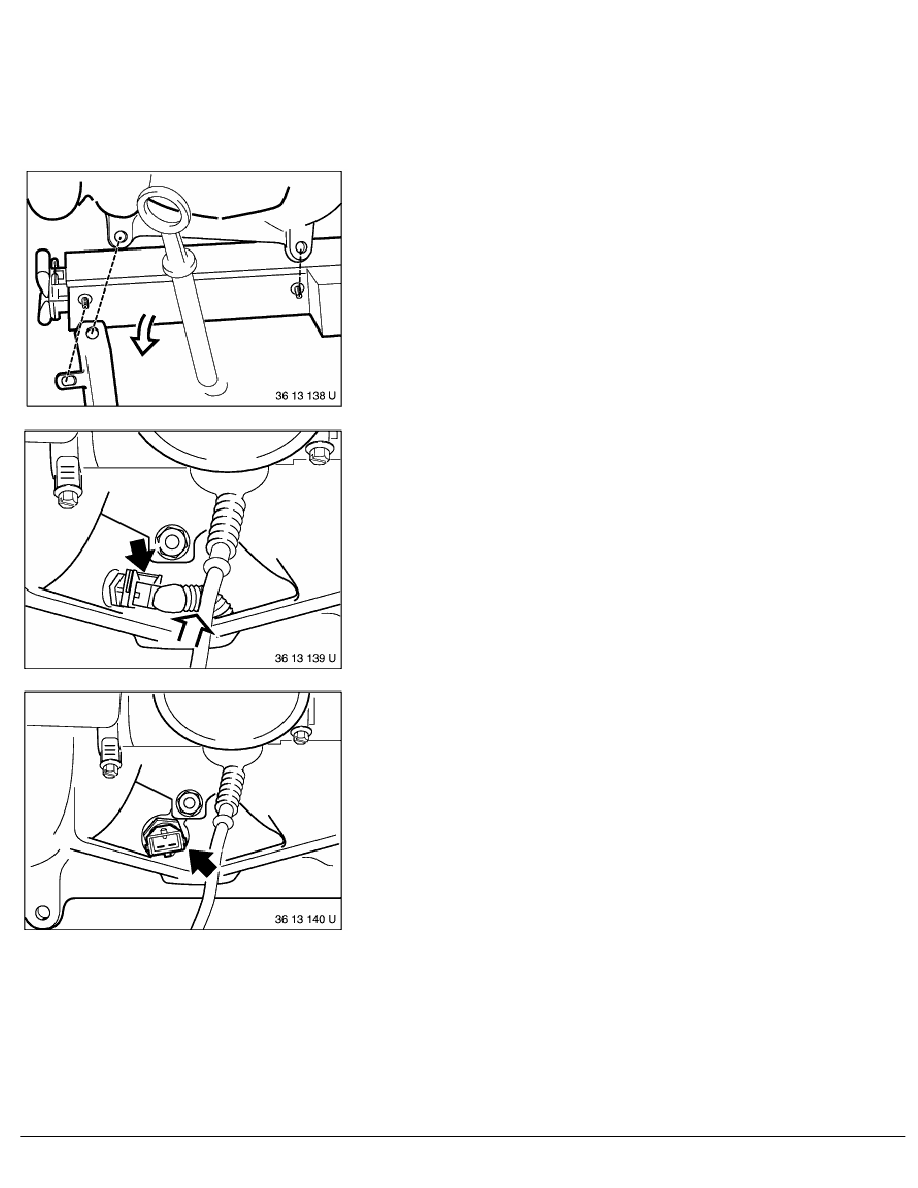

Remove manifold pipe.
Unscrew cable channel, remove air-intake hose and unscrew
bracket for cable channel.
Disconnect plug-in connection.
Unscrew telethermometer sensor.
Installation note:
Fill and bleed cooling system
refer to 17 00 039
RA Removing and installing or replacing telethermometer sensor (M40)
BMW AG - TIS
22.01.2013 02:31
Issue status (12/2007) Valid only until next DVD is issued
