3 Series E36 318i (M42) SAL
51 43 150
Removing and installing / replacing left or
right trim panels for door pillar (B-pillar)
(sedan and touring)
Unfastening seat belt screw on driver's seat (do not remove
front seat),
refer to 52 10 000
Removing rear rocker panel strip (inner),
refer to 51 47 030

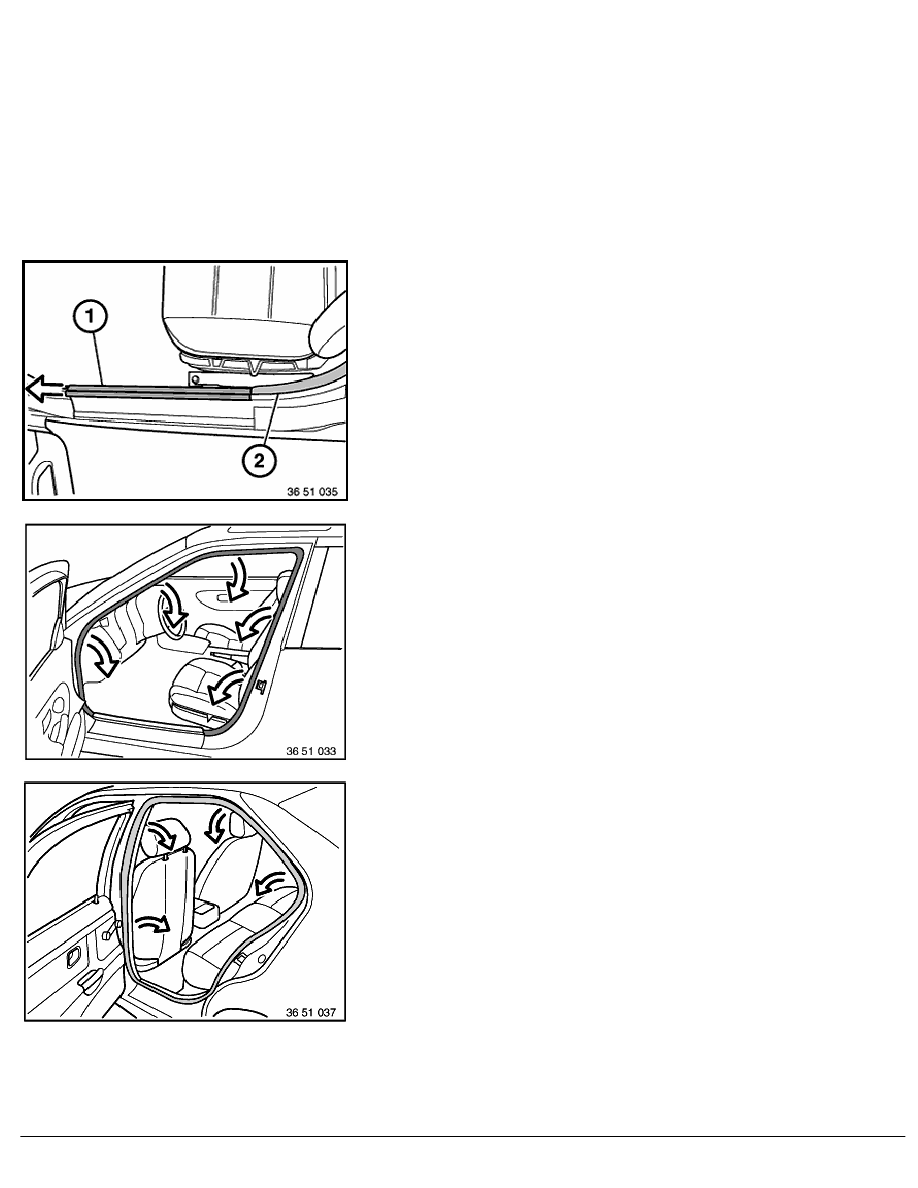

Slide cover (1) forwards until B-pillar finisher (2) is exposed.
Partially remove edge protection from front area of B-pillar finisher.
Partially remove edge protection from rear B-pillar finisher.
RA Removing and installing / replacing left or right trim panels for door pillar (B
BMW AG - TIS
23.01.2013 14:20
Issue status (12/2007) Valid only until next DVD is issued
