51 22 090

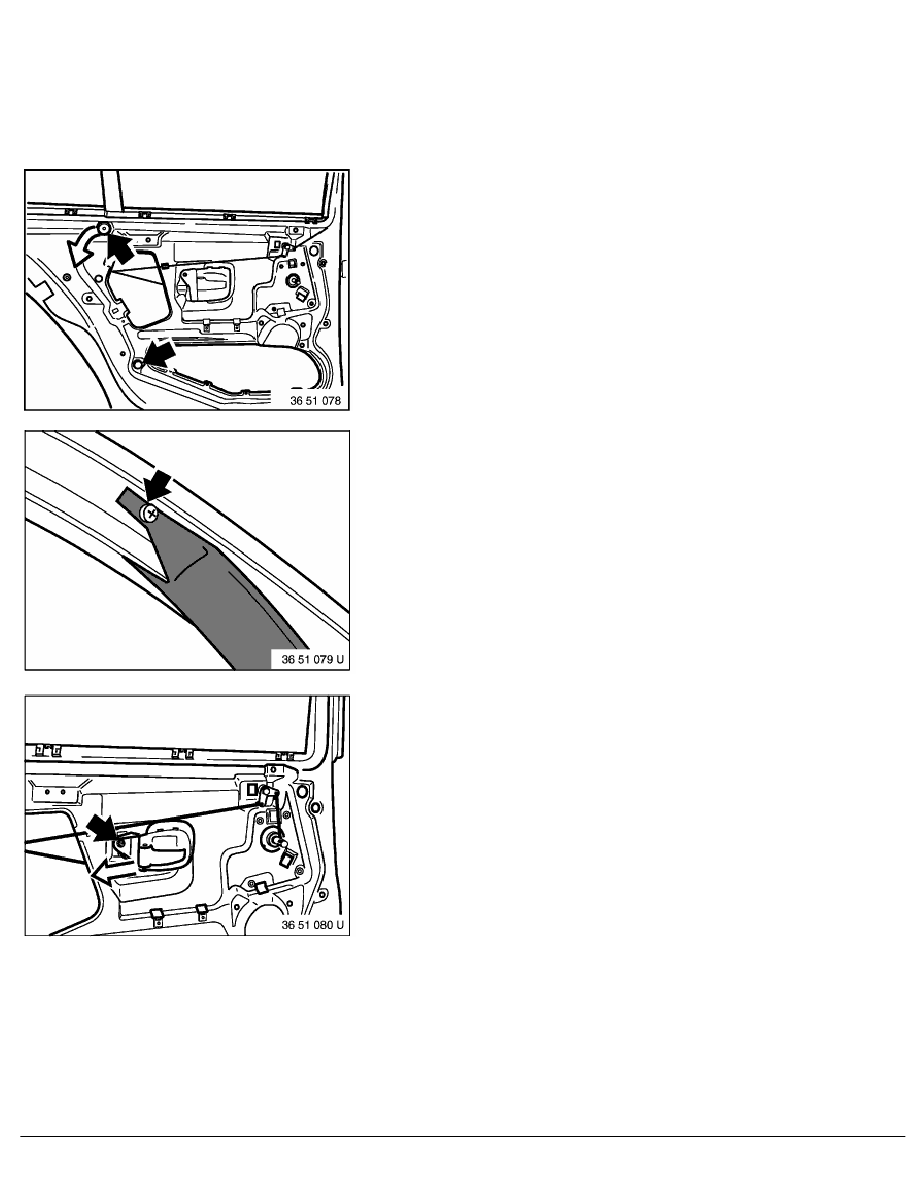

Removing and installing / replacing door lock
on left or right back door

Removing rear door window,

refer to 51 34 171

Lift off rubber part and unscrew screws.

Unscrew guide rail screw at rear top and push the guide rail aside
slightly.

Unscrew screws, lift internal lock activator out towards rear and
detach the linkage.

RA  Removing and installing / replacing door lock on left or right back door

BMW AG - TIS

25.01.2013  11:10

Issue status (12/2007) Valid only until next DVD is issued
