3 Series E36 318i (M43) TOUR

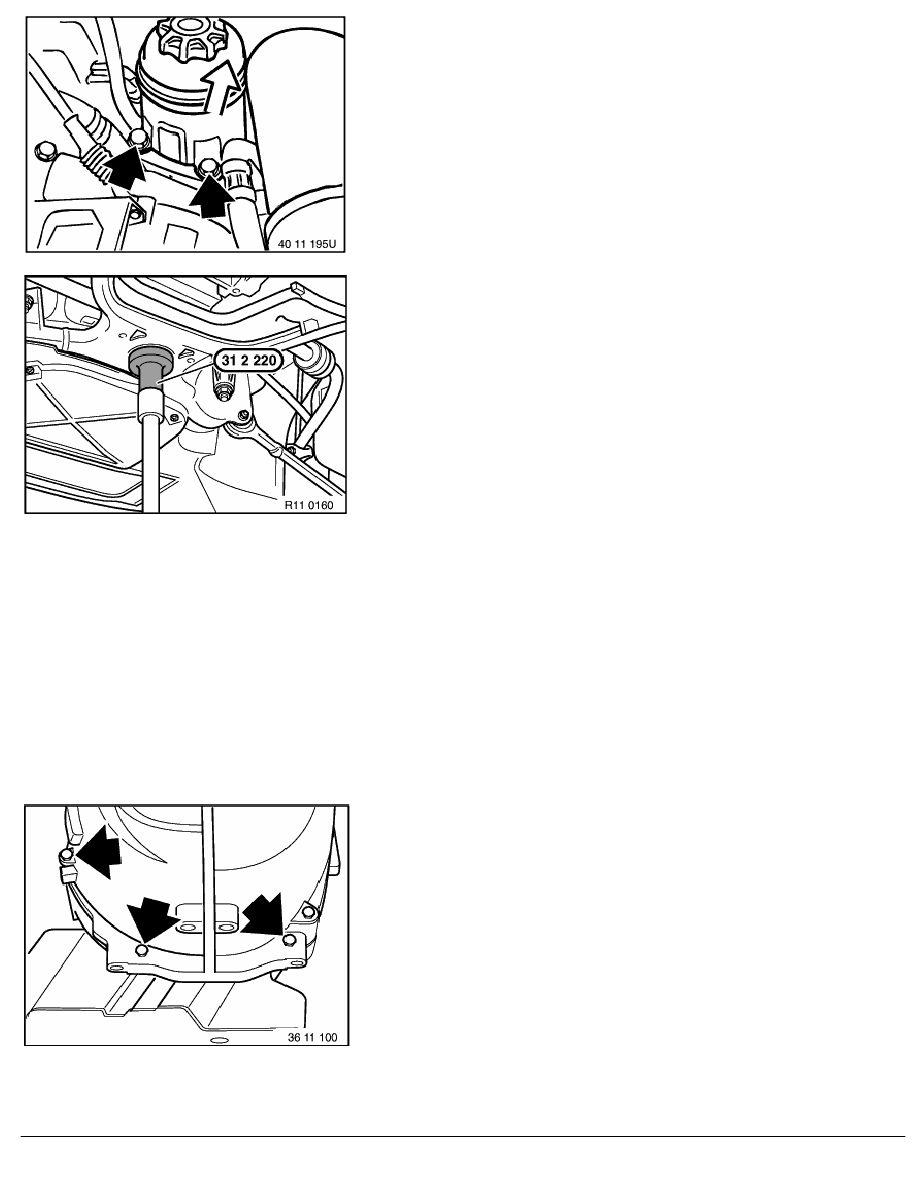

Unfasten the supply tank for the power steering.
Note:
Lines remain connected.
Brace front axle support with special tool 00 2 030 in
conjunction with special tool 31 2 220.
Unscrew engine mountings on bottom left and right. Unfasten left
and right control arm from engine carrier.
Unfasten screw connection on front axle support and lower the
front axle support.
These tasks are described in the section dealing with replacement
of front axle support,
refer to 31 11 001.
Note:
The steering gear must not be disconnected from the front
axle support.
Unclip fuel lines from bracket.
On vehicles with automatic transmission:
Detach oil lines from automatic transmission and from oil pan.
Release oil pan screws, transmission and engine side.
Lower oil pan and remove from rear.
RA Removing and installing, sealing or replacing oil pan (M43 / M43TU)
